1. UV Photodiode EOPD-265-0-0.3-CC Product Description:

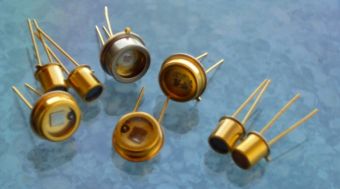

The UV photodiode EOPD-265-0-0.3-CC is a low-cost SiC photodiode with high spectral sensitivity in the UV region (205 nm-355 nm), packaged in a TO-52 housing with a
UV glass window, RoHS and WEE certified.
2. UV Photodiode EOPD-265-0-0.3-CC Applications:
♦ UV radiation measurement in the UV region♦ Sterilization lamp monitoring
♦ Flame detection
3. UV Photodiode EOPD-265-0-0.3-CC Parameters:
T amb = 25°C unless otherwise noted
| Parameter | Symbol | Value | Unit |
| Chip Size | A | 0.365*0.365 | mm2 |
| Active Area | A | 0.13 | mm2 |
| Reverse Voltage | VR | 20 | V |
| Operating Temperature Range | Tamb | ‘-40~125 | ℃ |
| Storage Temperature Range | Tstg | ‘-40~125 | ℃ |
| Soldering Temperature, 3 s | Tsol | 260 | ℃ |
