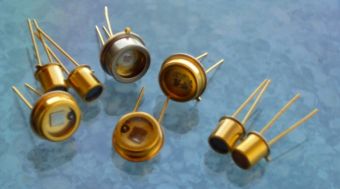

German EPIGAP UV Photodiode - EOPD-265-0-0.5-CC

1. UV Photodiode EOPD-265-0-0.5-CC Product Description:

The UV photodiode EOPD-265-0-0.5-CC is a low-cost SiC photodiode with high spectral sensitivity in the UV range (205 nm-355 nm). It is packaged in a TO-52 housing with a UV glass window and is RoHS and WEE certified.



2. UV Photodiode EOPD-265-0-0.5-CC Applications:

♦ UV radiation measurement in the UV range
♦ Sterilization lamp monitoring
♦ Flame detection

3. UV Photodiode EOPD-265-0-0.5-CC Parameters:

T amb = 25°C, unless otherwise specified

Parameter	Symbol	Value	Unit
Chip Size	A	0.5*0.55	mm2
Active Area	A	0.25	mm2
Reverse Voltage	VR	10	V
Operating Temperature Range	Tamb	‘-40~125	℃
Storage Temperature Range	Tstg	‘-40~125	℃
Soldering Temperature, 3 s	Tsol	260	℃
