Product Introduction

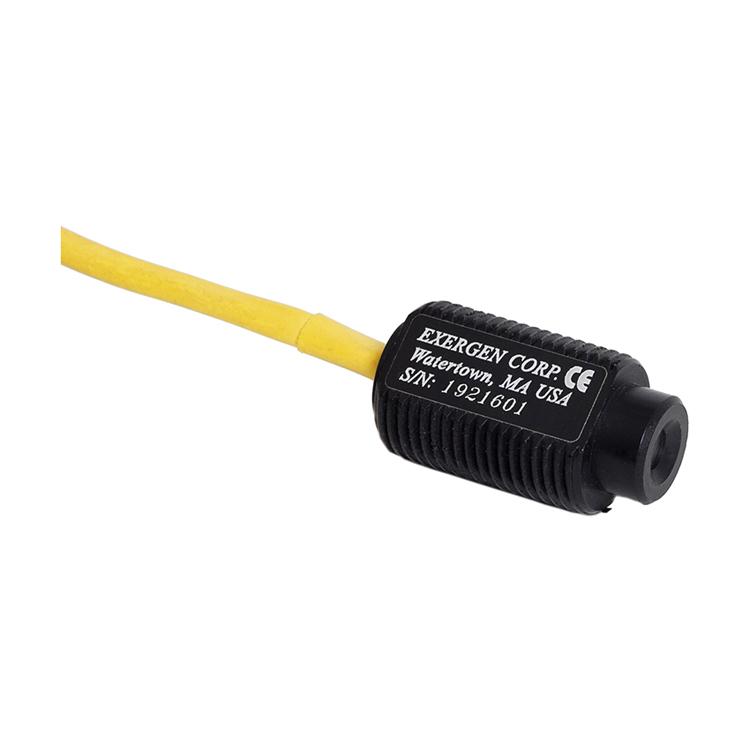

Netherlands Exergen Global Infrared Temperature Sensor IRt/c.01 Product Features:
• Infrared thermocouple measurement
• Non-contact temperature measurement
• Self-powered
• Intrinsically safe
• Repeatability 0.02°F (0.01°C)
• Interchangeability ±1%
• Resolution approximately 0.0001°C
• Compact size
Netherlands Exergen Global Infrared Temperature Sensor IRt/c.01 Parameters:
| Measurement Range |
-50 to 550°F (-45 to 290°C) |
| Response Time |
100 milliseconds |
| Ambient Temperature Range |
0 to 160°F (-18 to 70°C) |
| Range |

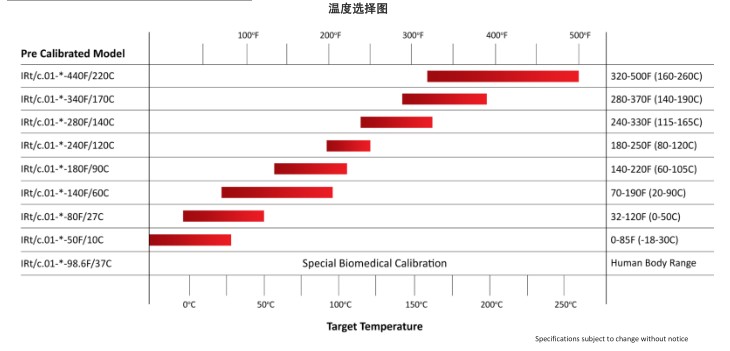

8 specifications (see temperature selection table) |
| Field of View |
1:1 (60°) |
| Minimum Spot Size |
0.3”(8mm) |
| Spectral Response |
6.5 to 14µm Output Impedance |
| Output Impedance |
3 kilohms |
| Dimensions |
1.28”x0.71”. (32.5 x 20 mm) |
| Housing |
High-strength ABS, hermetically sealed, better than NEMA 4, 4X; IP65, 67, intrinsically safe. Provided with double lock nuts |
| Cable |
Thermocouple, PVC, unshielded |
| Weight |
Approximately 40 grams, including cable |
Calibration
IRt/c.01-* Ordering Information: Please specify (thermocouple type) - (pre-calibrated temperature range).
J, K, E, T thermocouple types cover the entire specified temperature range.
