Product Introduction

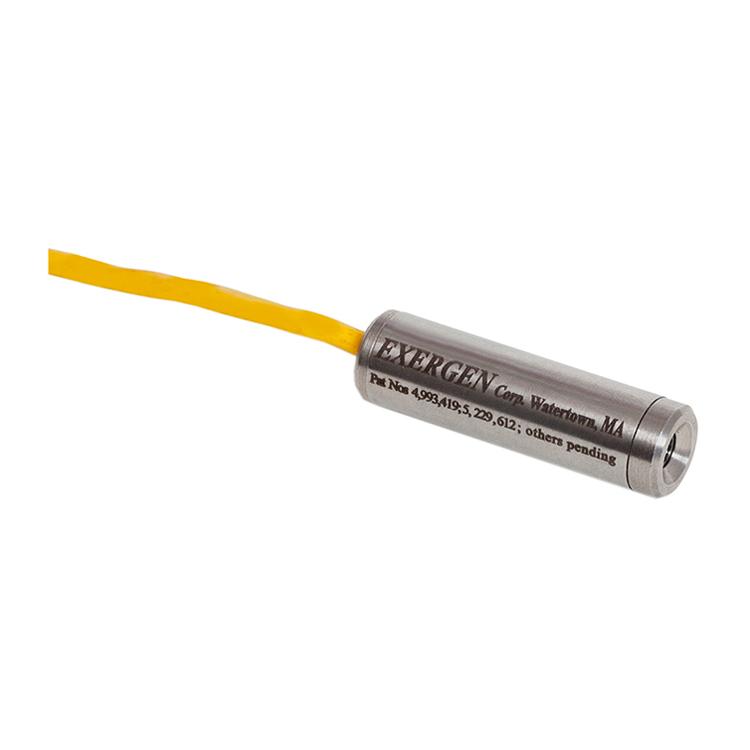

Netherlands Exergen Global Infrared Temperature Sensor Description:
IRt/c.01HB Features:
• Infrared Thermocouple IRt/c
• Non-contact
• Self-powered
• Intrinsically safe
• Repeatability 0.02°F (0.01°C)
• Interchangeability ±1%
• Resolution approx. 0.0001°C
• Micro size
Netherlands Exergen Global Infrared Temperature Sensor Parameters:
| Measurement Range |
-50 to 550°F (-45 to 290°C) |
| Response Time |
100 Ms |
| Ambient Temperature Range |
0 to 160°F (-18 to 70°C) |
| Optimal Temperature Measurement Solution |
32 to 122°F (0 to 50°C) (Human body temperature range) |
| Field of View |
1:1 (60°) |
| Minimum Spot Size |
0.3”(8mm) |
| Spectral Response |
6.5 to 14µm Output Impedance |
| Output Impedance |
3 kΩ |
| Dimensions |
2.0”x 1.0”Dia. (51 x 25mm) |
| Housing |
High-strength ABS, sealed, exceeds NEMA 4, 4X; IP65, 67, intrinsically safe |
| Connection Cable |
Thermocouple extension grade, PVC jacket, unshielded |
| Weight |
1.4 oz. (40g with cable) |
