Product Introduction

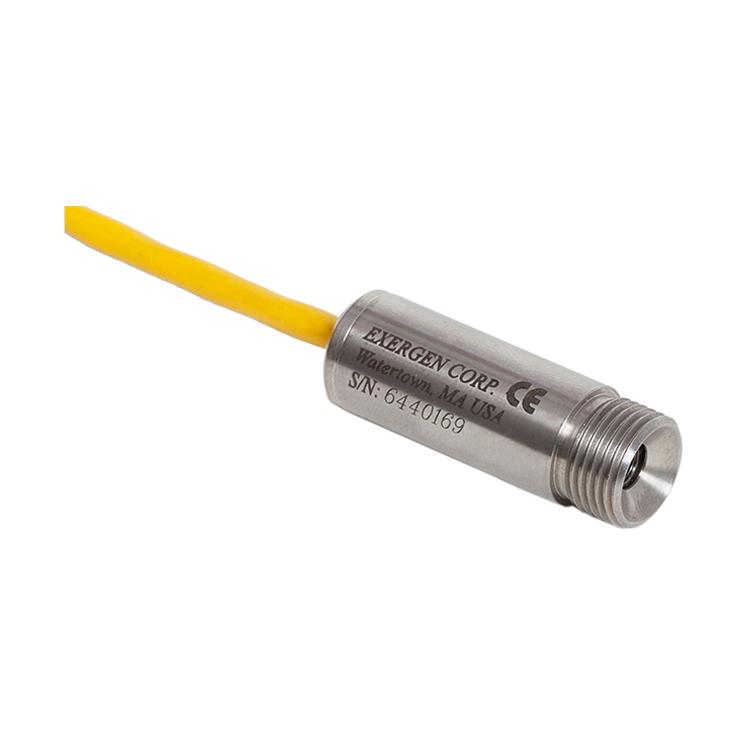

Dutch Exergen Global infrared temperature sensor IRT/C.1X features:
Infrared thermocouple measurement
Non-contact temperature measurement
Self-powered
Intrinsically safe
Repeatability 0.02°F (0.01°C)
Interchangeability ±1
Resolution 0.0001°C
Compact size
Dutch Exergen Global infrared temperature sensor IRT/C.1X parameters:
| Measurement Range |
-50 to 1200°F (-45 to 650°C) |
| Ambient temperature range |
0 to 212°F (-18 to 100°C) |
| Measurement range |
8 specifications (see temperature selection table) |
| Field of view |
Approximately 1:1 (60°) |
| Minimum spot size |
0.3” (8mm) |
| Corresponding spectrum |
6.5 to 14µm |
| Output impedance |
Approximately 3 kilohms |
| Response time |
100 milliseconds |
| Dimensions |
1.43” x0.50”. (36.3 x 12.7 mm) |
| Enclosure |
Stainless steel, hermetic sealing, better than NEMA 4, 4X; IP65, 67, connection wire grounded to shell for shielding, electrically no interference to signal |
| Connection wire |
Shielded, twisted pair, thermocouple wire (J, K, E, T), standard length 3 ft (0.9 m), Teflon wrapped, withstands ambient temperature 392°F (200°C) continuously |
| Weight |
Approximately 40 grams, including connection wire |
