Product Introduction

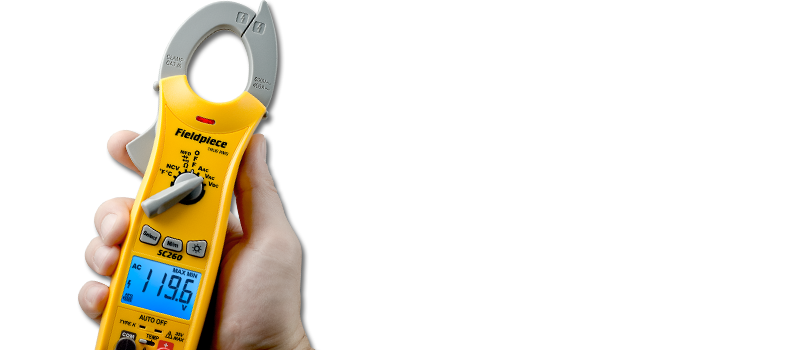

Mini Clamp MultimeterSC260Product Description:
Mini Clamp MultimeterSC260Very suitable forHVACRelectrical testing, AC voltage true RMS, accurate calculation; temperature test with Fahrenheit/and Celsius dual display, it also has a backlight for easy reading in dark places.
Mini Clamp MultimeterSC260Features:
DC/AC voltage
True RMSTRMS
Measures up to400AmpsACCurrent
Temperature measurement with dual displayF/C
Capacitance measurement
Non-contact voltage detection
Measures40MΩResistance,0.01Resolution
Diode testing
LCDBacklight
Mini Clamp MultimeterSC260Applications:
HVAC/R (HVACR) testing, electronic parameter measurement in other industries;
Mini Clamp MultimeterSC260Specifications:
Display:0000-4000
Backlight: Blue, lasts for5minutes
Overrange: Displays(0L)or(-0L)
Measurement rate:3times/S
Operating environment:0℃～50℃，<70%RH
Storage environment: -20°C to 60°C, <80%RH
Auto power off (APO): Approximately 30 minutes
Power: 9V alkaline battery
Battery life: 150 hours
Low battery indication: Battery icon flashes and displays 'L0.bt'
Dimensions: 205.5 × 67.4 × 45.1 mm
Weight: Approximately 265g (including battery)
Altitude: 2000m
Overload protection: 600VDC or 600VAC rms
