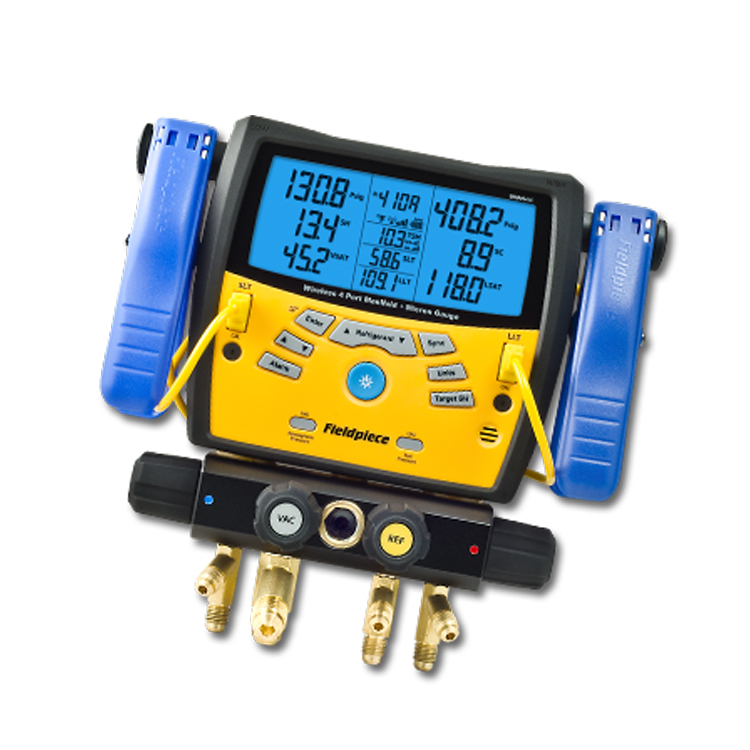

US Fieldpiece Wireless 4-Channel Digital Manifold Gauge - SMAN460

SMAN460 Wireless 4-Channel Digital Manifold Gauge Product Description:
The SMAN460 Wireless 4-Channel Digital Manifold Gauge is our manifold gauge, with superior features and benefits compared to similar products on the market; measures superheat and subcooling, 9 measurement values displayed simultaneously on the screen for easy reading; also built-in micron vacuum gauge, users can set high and low alarm points, when vacuum reaches the set point, buzzer alarm, also includes stopwatch, rate indicator and other micro gauges.

SMAN460 Wireless 4-Channel Digital Manifold Gauge Product Features:
Measurement: 2 pressure, 2 temperature
Calculation: superheat, subcooling, vapor saturation, liquid saturation
Wireless Advantage: Obtain indoor wet bulb and outdoor dry bulb measurements, and wirelessly transmit data to wireless system analyzer for identification, storage, etc., wireless range up to 30m;
Pressure Measurement Range: Multiple options within 0~4000MPa
Temperature Measurement Range: -70~537°C

SMAN460Wireless 4-Channel Digital Manifold Gauge Application Fields:
HVACR testing, other refrigeration industries

SMAN460 Wireless 4-Channel Digital Manifold Gauge Product Specifications:
Display Size: 5 Inch
Backlight: Blue, normally lasts 3 minutes
MINI-USB Port: Update to new firmware
Battery: 6 AA alkaline batteries
Battery Life: 350 hours (without backlight and vacuum)
Auto Power Off: 30 minutes
Operating Environment: 0~50°C, <75%RH
Storage Environment: -20~60°C, <80%RH
Overrange: Displays "0L" or "-0L"
Weight: 1.83kg
