Product Introduction

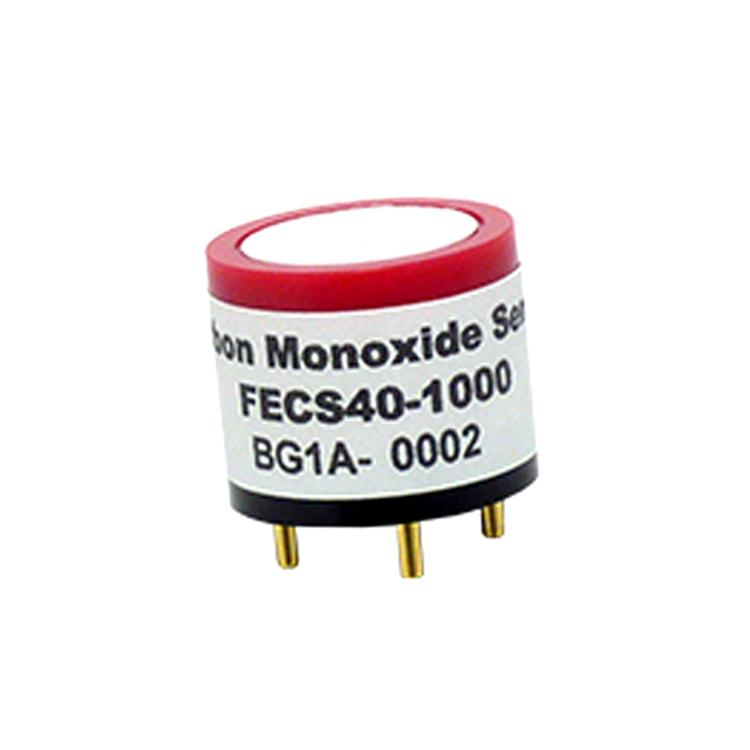

1. Japan Figaro ElectrochemicalCarbon Monoxide SensorsFECS40-1000-CO Description:
Figaro's carbon monoxide sensor FECS40-1000 is a unique electrochemical carbon monoxide sensor. Its notable feature is its unique leak-proof structure, making it ideal for carbon monoxide monitors and CO detector applications in various fields.
2. Japan Figaro Electrochemical Carbon Monoxide Sensor FECS40-1000-CO Features:
High sensitivity/selectivity to CO
Fast response to CO
Linear output
Long life
Stable baseline
Unique leak-proof structure
3. Japan Figaro Electrochemical Carbon Monoxide Sensor FECS40-1000-CO Applications:
Portable and fixed CO detectors
CO detection
Ventilation control in indoor parking lots
4.Japan Figaro Electrochemical Carbon Monoxide Sensor FECS40-1000-CO Parameters:
| Detection Gas |
CO |
| Range |
0 ~ 1000 ppm |
| Max Overload |
1500 ppm |
| Output Signal |
70±15 nA/ppm (*) |
| Repeatability |
±2% (*) |
| Resolution |
1 ppm (*) |
| Typical Baseline Range (clean air) |
-2 ppm to +3 ppm(*) |
| Typical Response Time (t90) |
< 30 sec (*) |
| Baseline Drift (-20 ~ 50°C) |
< 10 ppm(*) |
| Long-term Output Drift |
< 5% /year (*) |
| Expected Operating Life |
3 years (*) |
| Operating Temperature |
-20 ~ 50°C |
| Operating Humidity |
15 ~ 90% RH |
| Operating Pressure Range |
1013 hPa±10% |
| Recommended Load Resistor |
10Ω |
| Reference Voltage |
Not required |
| Position Sensitivity |
None |
| Recommended Storage Temperature |
0 ~ 20°C |
| Storage Life |
6 months |
| Appearance Color |
Red |
| Weight |
Approximately4.5g |
