Japan Figaro Methane Pre-calibrated Module Natural Gas Alarm Pre-calibrated ModuleFSM-G-11E Description:

The FSM-G-11E is a pre-calibrated module for natural gas alarms, whose precise calibration function comes from Figaro's temperature and humidity control device. The sensor TGS2611-E00 selected in this module is equipped with a filter that can eliminate interfering gases such as alcohol, thus providing higher selectivity to methane gas and faster response.

In the process of manufacturing reliable civil gas alarms, the calibration of the alarm point is crucial, which is a complex and time-consuming process requiring expensive calibration equipment. Using this module eliminates this costly calibration process, making it easier and simpler for users to manufacture civil natural gas alarms. Figaro provides users with a complex gas detector circuit design, including a temperature compensation circuit combined with a built-in thermistor, and a low-power methane gas sensor with individually adjustable load resistance.

The socket connection allows for easier periodic sensor replacement. This input/output socket simplifies the connection between the module and the main board; by simply replacing the module, the main board can be used for detectors for either methane or LP gas. This module is designed to meet the performance requirements of EN50194 and UL1484. For sensor sensitivity characteristics, please refer to 'Technical Information for TGS2611', and for further information on circuit design, please refer to 'Application Notes for TGS2611'.

Japan Figaro Methane Pre-calibrated Module Natural Gas Alarm Pre-calibrated ModuleFSM-G-11E Features:

Factory Calibrated

Temperature Compensation Circuit

Uses Anti-interference Sensor TGS2611

Compact Size

RoHS Compliant

Japan Figaro Methane Pre-calibrated Module Natural Gas Alarm Pre-calibrated ModuleFSM-G-11E Applications:

Civil natural gas alarm control

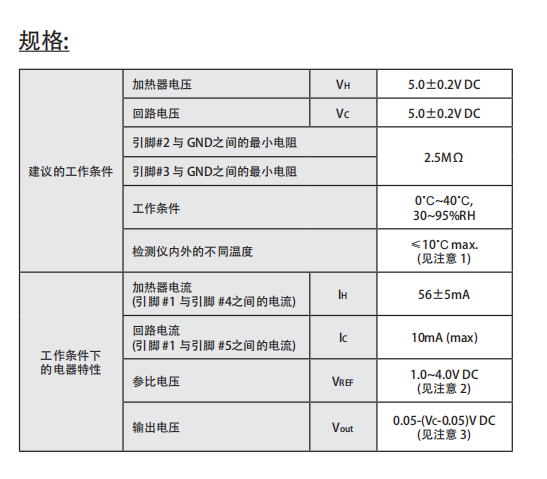

Japan Figaro Methane Pre-calibrated Module Natural Gas Alarm Pre-calibrated ModuleFSM-G-11E Parameters:

Model			FSM-G-11E
Standard Test Conditions	Test Gas Conditions		Methane in Air5000±100ppm 20˚C±2˚C, 65±5%RH
	Circuit Conditions		VH=5.0±0.05V DC VC=5.0±0.05V DC
	Test Preheating Time		48 Hours
Standard Test Conditions Electrical Characteristics Under	Reference Voltage	VREF(STD)	VOUT(STD)±0.5V DC
	Output Voltage	VOUT(STD)	2.5±0.5V DC

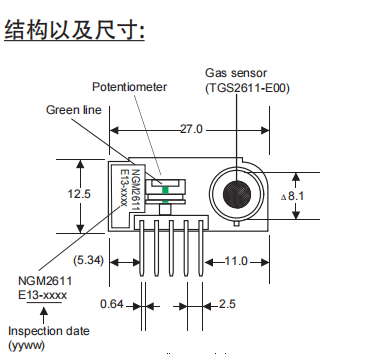

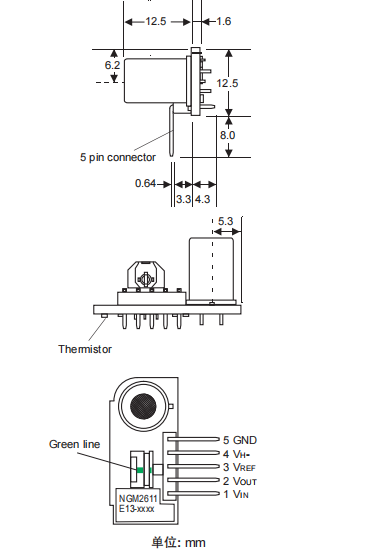

Japan Figaro Methane Pre-calibrated Module Natural Gas Alarm Pre-calibrated ModuleFSM-G-11E Dimensions:

Important Note: Before using the module, when performing the initial setting of the potentiometer, check and confirm that the potentiometer is in the correct position. There is a green line on the FSM-G-11E for alignment; the green line on the potentiometer must be aligned with it.
