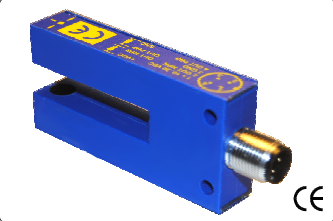

1. Description of FOP10 Series UV Sensor:
In the required applications, due to its construction and mechanical dimensions, the FOP fork is particularly suitable for label control. High-speed detection and strong resistance to optical noise make it reliable.
2. Technical Characteristics of FOP10 Series UV Sensor:
Slot Width 10mm
Supply Voltage 10÷30Vdc
Drift <10%
Power Consumption <30mA
Load 250mA
Voltage Drop 1.5V@100mA
Short Circuit Protection Yes
Reverse Polarity Protection Yes
CE Certification EN60947-5-2
Slot Width 10mm
Infrared Pulse Emission 880nm
Operating Frequency 1KHz
Operating Temperature 0°C~50°C
Storage Temperature -25°C~70°C
Base Material Plastic
Lens Material PMMA
Protection Rating IP54
