General-purpose Digital-to-Analog Converter Chip - MS5224D

12-bit resolution
Programmable settling time 3us or 9us
Compatible with TMS320, SPI, Microwire interfaces
Internal power-on reset
Low power consumption: 8mW at 5V, 3.6mW at 3V
Integrated REF buffer
Output range is 2 times the reference voltage
Temperature insensitive
Software power-down
Supply voltage: 2.7V~5.5V

Product Model: MS5224D

Product Introduction

The general-purpose digital-to-analog converter chip MS5224D is a 12-bit, four-channel output voltage-type DAC with a three-wire serial interface compatible with TMS320, SPI, QSPI, and Microwire serial ports. Data is 16 bits, including control bytes and 12-bit DAC data. The MS5224D operates over a power supply range of 2.7V to 5.5V. It integrates an internal resistor string divider output connected to a class AB output, rail-to-rail buffer with 6dB gain amplification. The output buffer improves stability and reduces settling time.

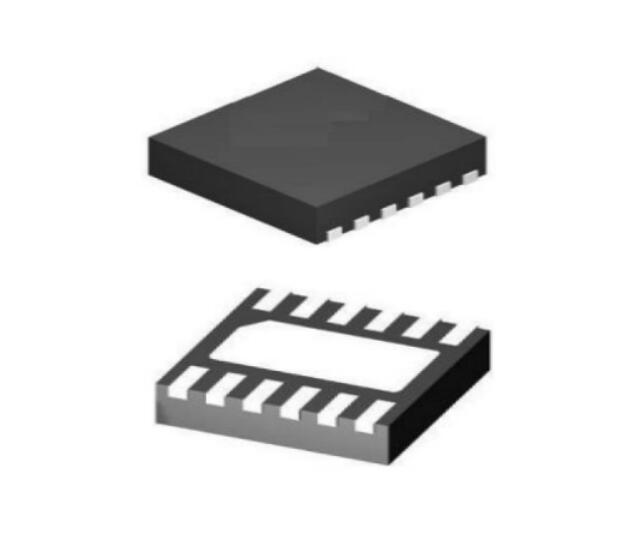

The MS5224D is available in a DFN12 package.

1. Features of the general-purpose digital-to-analog converter chip MS5224D:

2. Applications of the general-purpose digital-to-analog converter chip MS5224D:

Digital servo system control

Digital compensation and gain adjustment

Industrial process control

Mechanical and mobile control equipment

Mass storage devices
