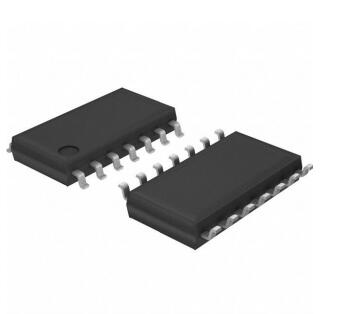

General-purpose digital-to-analog converter chip - MS5620
Four-channel 8-bit voltage output
3V to 5V single power supply operation
Serial interface
High impedance reference input
Programmable 1x or 2x output range
Simultaneous update flexibility
Internal power-on reset
Low Power Consumption
Half-buffered output
Product Introduction
MS5620 is a four-channel with high impedance buffered reference inputSerial 8-bit voltage output digital-to-analog converter (DAC). This DAC can produceCan produce a voltage output of 1x or 2x the reference voltage relative to ground, and is guaranteed to beMonotonic. Since the chip operates on a single power supply of 3V to 5V, this makesMaking its use very convenient. The on-chip embedded power-on reset function ensuresRepeatable startup conditions.
1. Characteristics of general-purpose digital-to-analog converter chip-MS5620:
Four-channel 8-bit voltage output
3V to 5V single power supply operation
Serial interface
High impedance reference input
Programmable 1x or 2x output range
Simultaneous update flexibility
Internal power-on reset
Low Power Consumption
Half-buffered output
2. Application of general-purpose digital-to-analog converter chip-MS5620：
