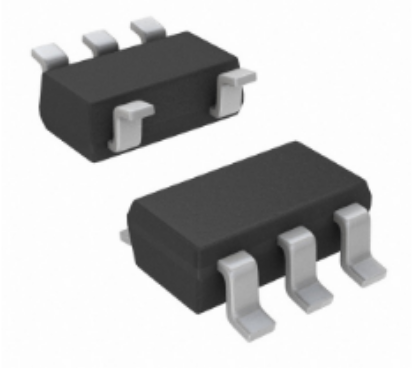

General-purpose operational amplifier - MS321
(VCC=5V, TA=25°C, typical values unless otherwise specified)
Gain bandwidth product: 1MHz
Low supply current: 430uA
Low input bias current: 30nA
Supply voltage range: 2.5V to 36V
Stable with large capacitive loads
Product introduction

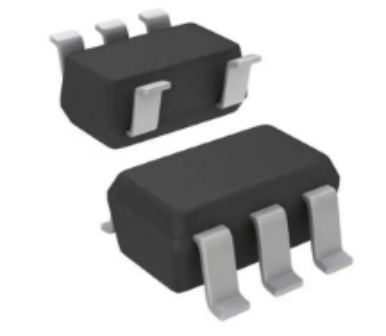

MS321/358/324They are single, dual, and quadoperational amplifiers. They feature high unity-gain bandwidth, and under specific conditionsthe slew rate can reach0.4V/us, and each amplifier's quiescent current（5V) is only430uA. The input common-mode range extends to ground, andthe device can operate from either a single or dual power supply. It can also easilydrive large capacitive loads.
1. Features of the general-purpose operational amplifier MS321:
(VCC=5V, TA=25°C, typical values unless otherwise specified)
Gain bandwidth product: 1MHz
Low supply current: 430uA
Low input bias current: 30nA
Supply voltage range: 2.5V to 36V
Stable with large capacitive loads
2. Applications of the general-purpose operational amplifier MS321:
