Product Introduction

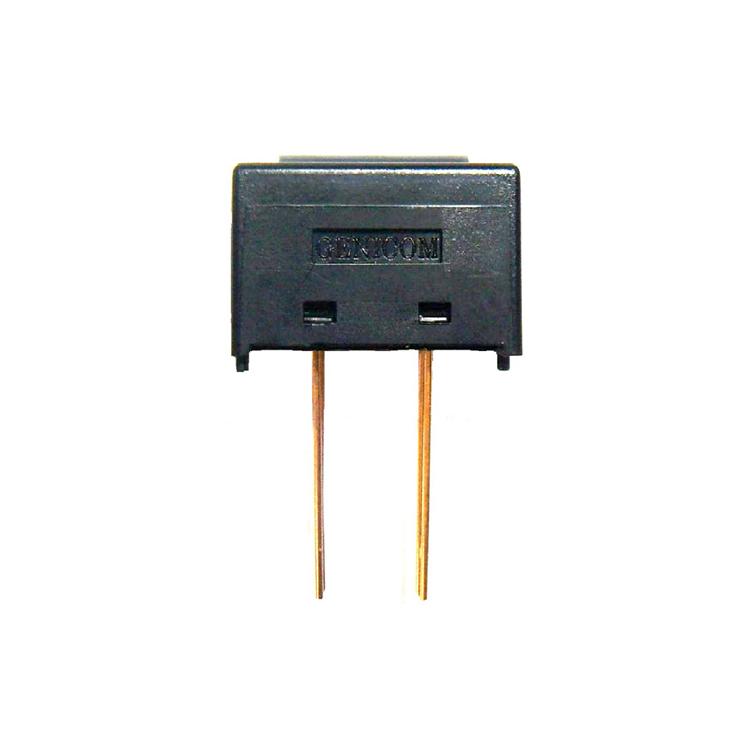

I. Features of Reflective UV Sensor GUVF-P12MD:
Emission wavelength - 365nm
Emitter - Absorption filter in visible light range
Receiver - UV absorption filter
Fluorescent ink response
II. Applications of Reflective UV Sensor GUVF-P12MD:
- Currency detection
- Counterfeit bill detection
III. Specifications of Reflective UV Sensor GUVF-P12MD:
Emitter
Forward voltage: 4V
Peak wavelength: 360~370nm
Receiver
Short-circuit current: 40~180 nA
Leakage current: 20nA
Dark current: 10nA
Spectral sensitivity: 450~1050nm
Peak wavelength: 880nm
