Product Introduction

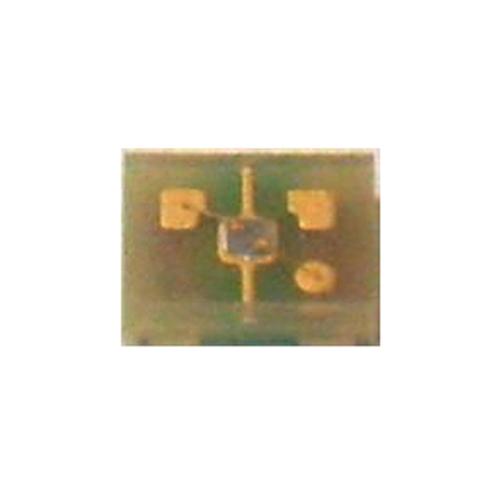

1. Description of UV sensor GUVA-C22SD
UV Sensor GUVA-C22SD, with good visible blindness, high response, low dark current, used for UV index monitoring and UV-A lamp/LED monitoring, etc.
II.UV sensor GUVA-C22SDFeatures:
-Chip size 0.4mm, COB2418 package
-Gallium nitride material
-Schottky photodiode
-Photovoltaic mode operation
-Good visible blindness
-High response, low dark current
III.UV sensor GUVA-C22SDApplications:
-UV index monitoring
-UV-A lamp/LED monitoring
IV.UV sensor GUVA-C22SDSpecifications:
Spectral detection range: 240-370nm
Active area: 0.076mm2
Responsivity: 0.14A/W
Dark current: 1nA
Photocurrent: 101~125nA UVA lamp, 1mW/cm2
UVThe sensor can be widely used in: UV index detection for smart wearable devices, such as those withUVWatches with index detection function, withUVSmartphones with index detection, outdoor detectionUVIndex devices, etc., and can also be used to monitor UV intensity during UV disinfection.UVFlame detectors, etc.
