Product Introduction

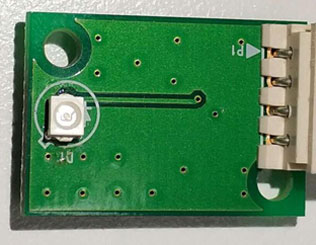

I.UV Sensors- GUVA-S12SD Product Introduction:
GUVA-S12SDAdopts SMD package (SMD3528）,especially suitable for small-sized devices. The sensor output current is proportional to light intensity, and the product output has very high consistency. The sensor has a specific spectral response, mainly for UV measurement in sunlight andUVAlamp intensity measurement, especially suitable forUVIdetection.
II. UV Sensor - GUVA-S12SD Features:
- Chip size 0.4mm, SMD 3528 package
- Gallium nitride material
- Schottky photodiode
- Good visible blindness
- Photovoltaic mode operation
- High response, low dark current
III. UV Sensor - GUVA-S12SD Applications:
Using portable devices to detect UV index (mobile phones, etc.)
Smart wearable devices
UV-ALamp monitoring
UV LED monitoring ( < 360nm)
UV curing
IV. UV Sensor - GUVA-S12SD Specifications:
Spectral detection range: 240-370nm
Active area: 0.076mm2
Responsivity: 0.14A/W
Dark current: 1nA
Photocurrent: 101~125nA UVA lamp, 1mW/cm2
