Product Introduction
1. UV sensor GUVB-C21SDDescription

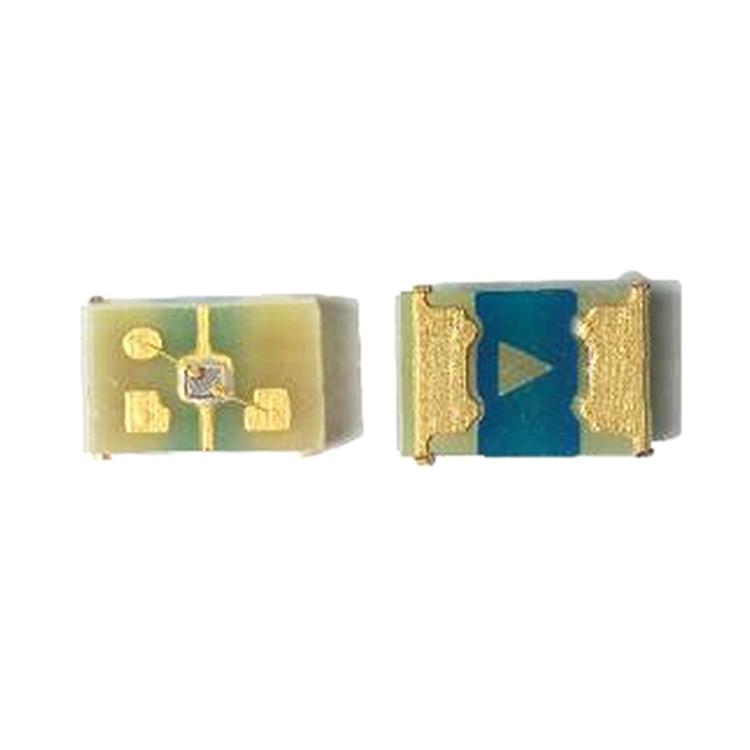

UVB UV Sensor GUVB-C21SD, with high sensitivity and good solar blindness, peak response at 300nm band, COB2418 package (Al housing). Mainly used for UV index monitoring, UV-B lamp monitoring, and medical applications.
2. Characteristics of UV sensor GUVB-C21SD:
-Chip size 0.4mm, COB 2418 package
-AlGaN material
-Schottky photodiode
-Photovoltaic mode operation
-Good visible blindness
-High response, low dark current
3. UV sensor GUVB-C21SDApplications:
-UV index monitoring
4. UV sensor GUVB-C21SDSpecifications:
Spectral detection range: 240-320nm
Active area: 0.076mm2
Responsivity: 0.11A/W
Dark current: 1nA
Photocurrent: 64~78nA UVB lamp, 1mW/cm2
UVThe sensor can be widely used in: UV index detection for smart wearable devices, such as those withUVWatches with index detection function, withUVSmartphones with index detection, outdoor detectionUVIndex devices, etc., and can also be used to monitor UV intensity during UV disinfection.UVFlame detectors, etc.
