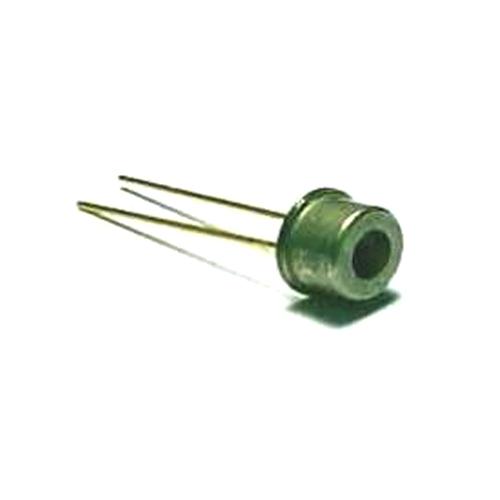

South Korea GENICOM Visible Light Sensor - GVBL--T12GD
Quartz glass TO-46 package
Indium gallium nitride material
PN-type photodiode
Photovoltaic mode operation
High responsivity, low dark current
Response band: 330-445nm
Responsivity: 0.13A/W
Operating temperature: -30~85℃
Product Introduction
1. Introduction to South Korea GENICOM UV-Visible Light Sensor GVBL-T12GD
The UV-visible light sensor GVBL-T12GD monitors the range of 330-445nm. This sensor is in TO package, has good temperature stability, and can completely shield UVC and UVB ultraviolet rays. Since this UV-visible light sensor has output under sunlight, care should be taken to avoid interference from ambient light during use.
2. Specific parameters of South Korea GENICOM UV-Visible Light Sensor GVBL-T12GD dimensions:
Chip less than 0.4mm
3.Performance parameter table of South Korea GENICOM UV-Visible Light Sensor GVBL-T12GD:
| Parameter | |
Remark |
| Operating temperature | -30~85℃ | / |
| Reverse voltage | 5V | |
| Soldering temperature | 260℃ | 10S |
| Dark current | 1nA | Vr=0.1V |
| Photocurrent | 550nA | LED（385nm），1mw/cm² |
| Responsivity | 0.13A/W | λ=385nm，Vr=0V |
| Response band | 330-445nm | 10% of R |
4. Application fields of South Korea GENICOM UV-Visible Light Sensor GVBL-T12GD:
UV LED monitoring (385, 365nm, etc.)
Blue LED monitoring
UV lamp monitoring
UV curing
