Product Introduction

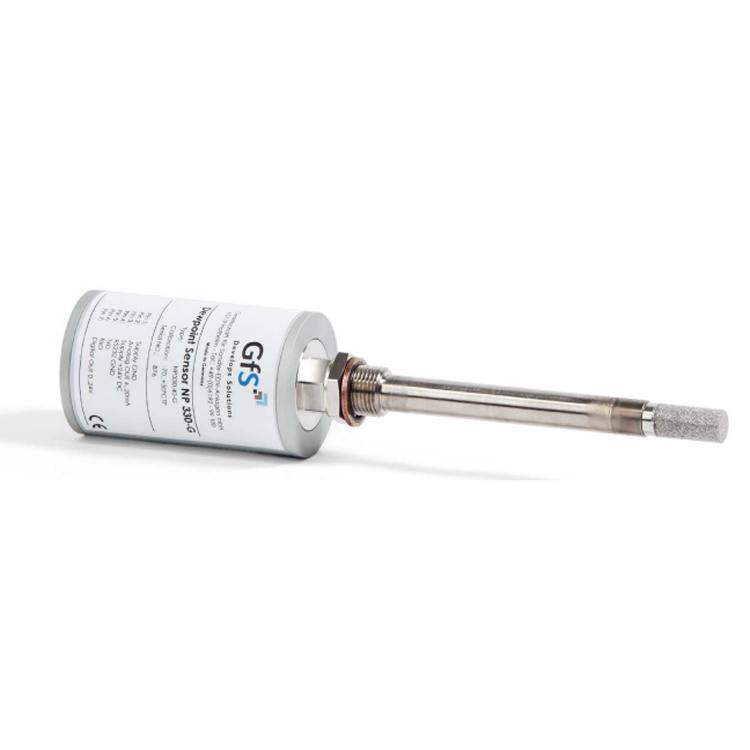

German GFS Dew Point SensorNP330-G Description:
Measures trace moisture in gases
Absolute dew point sensor, measures trace moisture in gases from -80°C DP to +20°C DP.
Humidity sensor NP330-G for online measurement of absolute water content (dew point) in air and corrosive gases
Programmable switch output for alarm signals
Calibrated against dew point mirror
Robust and reliable construction, protection class IP65
OEM manufacturing available
Explosion-proof design available on request
German GFS Dew Point SensorNP330-G Features:
Measuring range -80°Cdp to +20°Cdp
Accuracy ±2°Cdp
Temperature compensation
Fast response time
High media compatibility
System pressure up to 300bar (4350psi)
German GFS Dew Point SensorNP330-G Applications:
Dryer management
Air conditioning system monitoring
Research and development
German GFS Dew Point SensorNP330-G Specifications:
| Current output |
4–20mA |
| Serial interface |
RS232 |
| Switch output |
24VDC/max.70mA |
| Measuring range |
-80°Cdp to +20°Cdp |
| Operating temperature |
-20°C to +60°C |
| System pressure |
Up to30MPa (300bar, 4350psi) |
| Power Supplies |
18V–28V DC/max.70mA |
| Protection class |
IP65 |
| Standard installation depth |
50mm5/8-18UNF* |
| Sensor protective sleeve |
Sintered protective filter Stainless steel 80μm |
