Product Introduction

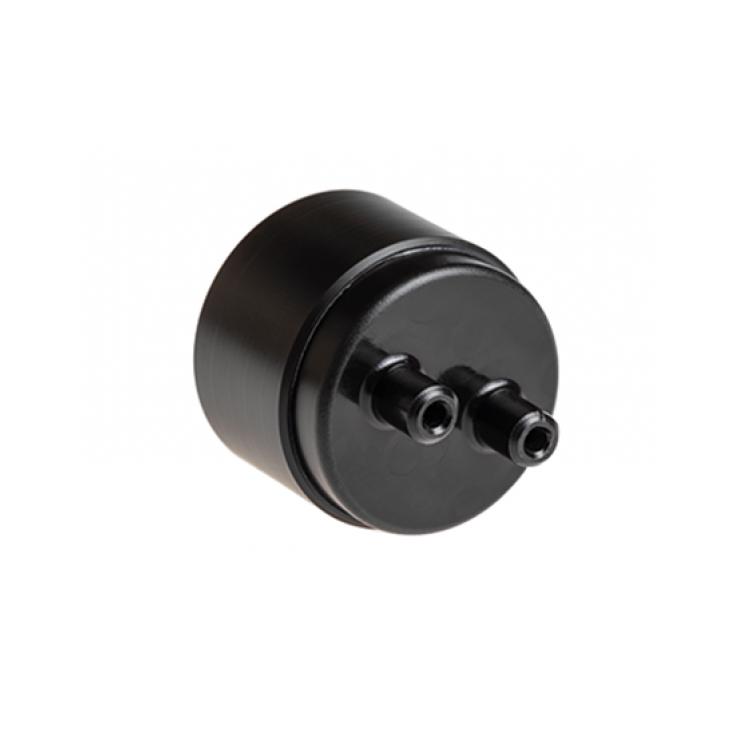

1. UK GSS Ultra-FastCO2 Sensors/CO2 Sensor SprintIR-R Description:
The new SprintIR-R is currently the fastest CO2 sensor. With a response speed 2.5 times faster than the SprintIR-6S, the R is now the fastest response NDIR CO2 sensor.
This sensor can take 50 readings per second, making it ideal for high-speed sensing requirements and measuring rapidly changing CO2 levels.
The SprintIR-R measures CO2 concentrations up to 100% and comes with a flow-through adapter.
The sensor is easy to use as it communicates via a simple UART interface.
With its compact design, the R can be easily integrated into measurement and detection systems. Its low power consumption also makes it ideal for battery-powered systems, including portable, wearable, and self-powered applications, as it only requires 3.3V.
The SprintIR-R is built on our unique patented LED technology platform and optical design. This solid-state technology enables first-class speed, power consumption, and durability.
Based on a flow rate of 0.1 liters per minute and a 0-10% step change in CO2 concentration.
2. Main Advantages of UK GSS Ultra-Fast CO2 Sensor/CO2 Sensor SprintIR-R:
Measures CO2 concentrations up to 100%
No heating
RoHS compliant
Solid state
Shock and vibration resistant
Digital (UART) output
Fast measurement – 50 measurements per second
Ideal for low-power and battery applications
Suitable for wireless, portable, wearable, and self-powered systems
Integrates with wireless IoT networks such as ZigBee, WiFi, LoRa, Bluetooth, SigFox, and EnOcean
3. UK GSS Ultra-Fast CO2 Sensor/CO2 Sensor SprintIR-R Measurement Range:
•0-5％
•0-20％
•0-100％
4. UK GSS Ultra-Fast CO2 Sensor/CO2 Sensor SprintIR-R Typical Applications:
The SprintIR-R is designed for high-speed sensing requirements and applications that need to capture rapidly changing CO2 concentrations, such as:
CO2 mapping
Metabolic assessment
Pulmonary function testing equipment
Academic research
Modified atmosphere packaging technology
Transportation
Industrial
