Product Introduction

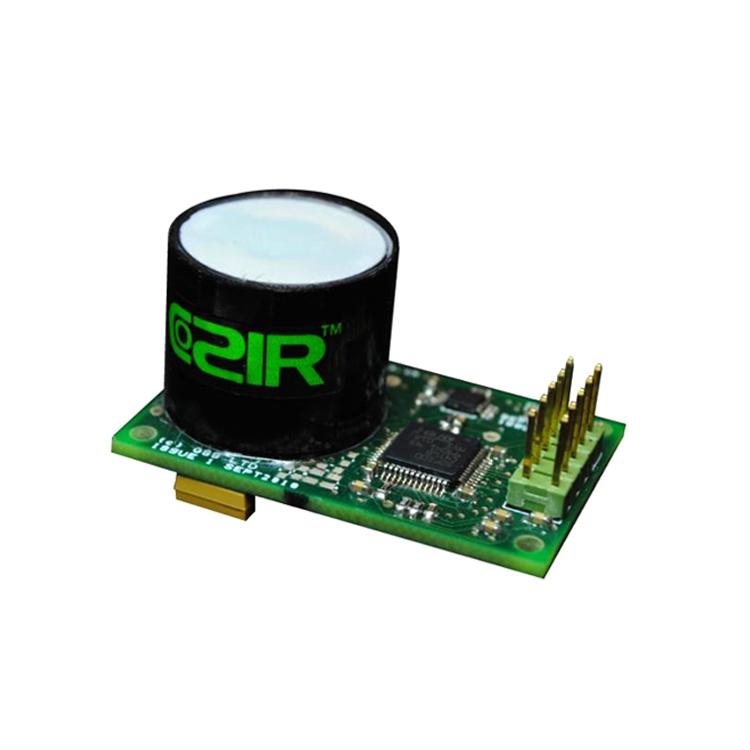

1. Low Power Wide Range Infrared CO2 Sensor (NDIR CO2 Sensor) COZIR-W/ExplorIR-W Product Description:
Infrared CO2 sensor(NDIR CO2 sensor)COZIR is a low power consumption3.5mWand high performance CO2 sensor, ideal for battery-powered products and portable devices; based on IR LED patented technology and innovative optical path design, making COZIR a low powerNDIR sensor; optional temperature and humidity output. Measurement ranges are0-5%， 0-20%， 0-60%and 0-100%, making COZIR-W suitable for applications such as diving, industrial safety, and automotive manufacturing.
2. Low Power Wide Range Infrared CO2 Sensor (NDIR CO2 Sensor)COZIR-W/ExplorIR-W Features:
Measurement range from 0 to 100%
Supply voltage 3.3V
Peak current only 33mA
Optional temperature and humidity output
3. Low Power Wide Range Infrared CO2 Sensor (NDIR CO2 Sensor)COZIR-W/ExplorIR-W Specifications:
| Warm-up time | 10S |
| Operating environment | 0℃ ~ 50℃ (standard) |
| |
-25℃ ~ 55℃ (extended range) |
| |
0 ~ 95%RH, non-condensing |
| Storage temperature | -30℃ ~ +70℃ |
| Sensing method | Non-dispersive infrared absorption technology |
| |
Gold-plated optical path patented technology |
| |
All-solid-state light source and detector patented technology |
| Sampling method | Free diffusion |
| Measurement range | 0-5%， 0-20%， 0-60%， 0-100% |
| Accuracy | ±70ppm or ±5% of reading, whichever is greater |
| Non-linearity | <1%FS |
| Operating pressure range | 950mbar ~ 1050mbar |
| Response time | 4 seconds to 2 minutes, readings twice per second |
| Power input | 3.2V to 5V (3.3V recommended) |
| |
Peak current 33mA |
| |
Average current <1.5mA |
| Power consumption | 3.5mW |
