Product introduction

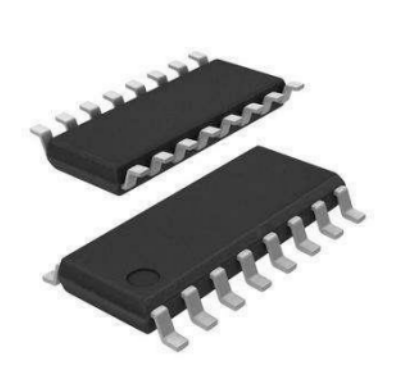

HBUS chip - MS1192It is an adapter chip compliant with theHBS bus specification (Japan Electronics Industry Association)with data transmission and reception capabilities. In the transmission and reception unitit usesAMIencoding, supports interconnection via twisted pair cables, and signal transmissionuses differential signaling.The chip operates on a single5Vpower supply and integrates output transistors internallyto reduce the number of external components required.MS1192It is mainly used in telephones and related equipment, security devices,AVequipment, air conditioning equipment, etc.
I. Features of HBUS chip MS1192:
Pulse transformer replacement
High reliability
Operates on a single 5V supply
Low cost
Few external components, simple design
Baud rate up to 119200bps
II. Applications of HBUS chip MS1192:
