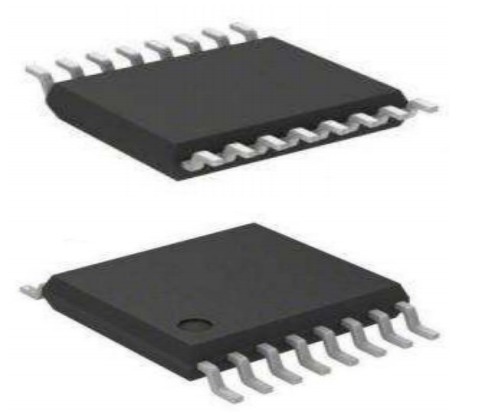

High-precision analog-to-digital converter chip - MS5213T
MS5213T: 2 fully differential input channels
16-bit no missing code output accuracy
0.003% nonlinearity
Programmable gain front end: gain from 1 to 128
3-wire serial interface: SPI®, QSPI™, MICROWIRE™, DSP compatible
SCLK with internal Schmitt trigger
Operating voltage: 2.7V to 3.3V or 4.75V to 5.25V
Maximum power consumption of 1mW at 3V supply voltage
Maximum standby current of 8μA
16-lead TSSOP package
Product introduction
MS5213Tis an analog-to-digital converter designed for low-frequency measurements. It usesΣ-Δconversion technology to achieve16bit no missing code accuracy. The operatingvoltage range is2.7V-3.3Vor4.75V-5.25V, and it has2fully differentialanalog signal input channels.
I. Features of high-precision analog-to-digital converter chip MS5213T:
MS5213T: 2 fully differential input channels
16-bit no missing code output accuracy
0.003% nonlinearity
Programmable gain front end: gain from 1 to 128
3-wire serial interface: SPI®, QSPI™, MICROWIRE™, DSP compatible
SCLK with internal Schmitt trigger
Operating voltage: 2.7V to 3.3V or 4.75V to 5.25V
Maximum power consumption of 1mW at 3V supply voltage
Maximum standby current of 8μA
16-lead TSSOP package
II. Applications of high-precision analog-to-digital converter chip MS5213T：
Pressure measurement
