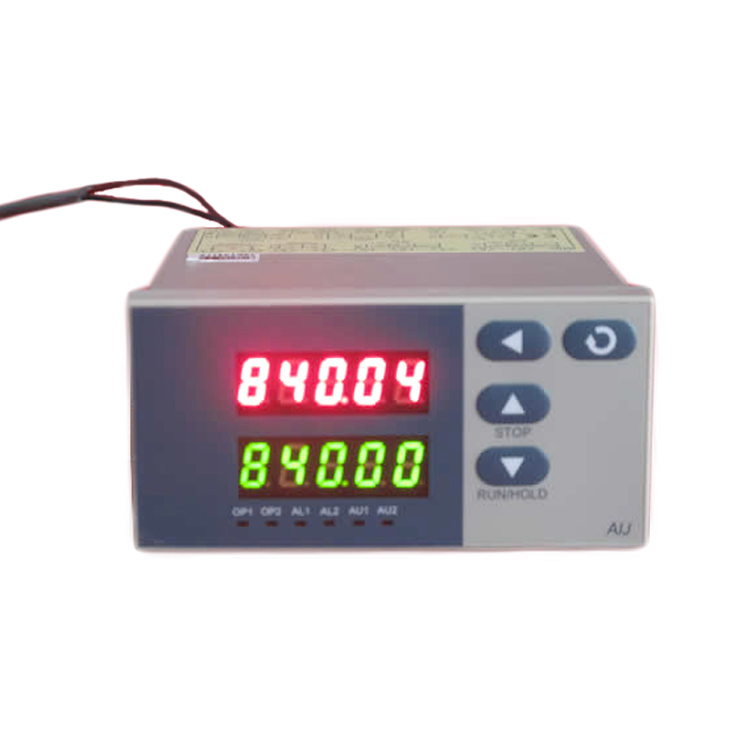

JWKZ High-Precision AI Temperature ControllerMain Features
• High precision (24-bit AD, five-digit display, 0.05 class) digital instrument, supports multiple thermocouple and RTD specifications, resolution up to 0.01℃ (Pt- 0.001℃)
• Uses advanced AI artificial intelligence PID adjustment algorithm, no overshoot, with self-tuning (AT) function.
• Uses advanced modular structure, provides rich output specifications, widely meets the needs of various applications.
• Output power resolution up to 0.01%, with manual/automatic switching function.
• Used in occasions where the set value needs to be automatically changed according to a certain time law for precise control. Has 180-segment program scheduling function.
• Can modify programs and parameters online, parameter lock provides different data operation permissions.
• Has power failure handling, measured value startup and preparation, curve fitting, and running multiple curves functions.
• Users can perform secondary calibration and nonlinear compensation on measured values within a given range to achieve higher precision measurement and control.
• User-friendly design of operation methods, easy to learn and use.
• Universal 100-240VAC input range switching power supply, frequency 50Hz and 60Hz selectable.
Note: Users must carefully read this manual to correctly use and fully utilize the functions of this instrument. Before using the JWKZ instrument, parameters should be correctly set according to its input, output specifications and functional requirements. Only instruments with properly configured parameters can be put into use.
JWKZ High-Precision AI Temperature Controller Technical Specifications
• Input specifications:
Thermocouples: S(-50～+1760℃), K(-270～+1370℃), E(-270～+1000℃), J(-210～+1200℃), T(-270～+400℃), R(-50～+1760℃), B(40～+1820℃), N(-270～+1300℃), WRe3-WRe25(0～+2310℃), WRe5-WRe26(0～+2310℃), F2(700～+2000℃), etc. (accuracy 0.05 class, resolution 0.01℃). Measuring the temperature difference between the hot and cold ends of the thermocouple is the basic function of this instrument. The cold end uses internal compensation or external compensation. External compensation can use Cu50 or PT100, automatically identified by the instrument.
RTDs: Pt100(-200～+850℃), Pt1000(10～+100℃), Cu50(-50～+150℃), rF(0～300K)
(Accuracy 0.02 class, resolution 0.01℃, PT100 and Pt1000 have resolution 0.001℃ in the range of -10~+100℃)
(PT100 and Pt1000 have the same marking, automatically identified by the instrument)
Linear voltage (mV): -10~120mV (accuracy 0.02 class, resolution 1μV).
Linear resistance (Ω): 0~500Ω, 900~1200Ω (accuracy 0.02 class, resolution 0.001Ω).
Linear voltage (V): I5:0～5V, I10:0～10V, I200:0～200V, I500:0～500V, etc. (accuracy 0.05 class).
Linear current (mA): I2:0～20mA, I4:4～20mA (accuracy 0.05 class).
Linear (voltage, current) input requires custom modules (I5, I10, I200, I500 and I2, I4 modules).
• Sampling period: 1 sample every 0.2 seconds.
• Control period: fixed at 0.2 seconds for thyristor zero-crossing or phase-shift triggering instruments, continuously adjustable from 0.2 seconds to 100 seconds for on-off switch adjustment mode.
• Adjustment method: AI artificial intelligence adjustment, including PID and parameter self-tuning advanced control algorithm (during self-tuning, uses on-off control mode with adjustable hysteresis and power)
• Output specifications (modular):
Relay contact switch output (normally open + normally closed): 250VAC/1A or 30VDC/1A
Thyristor non-contact switch output (normally open or normally closed): 100～240VAC/0.2A (continuous), 2A (20mS instantaneous, repetition period greater than 5S) SSR voltage output: 12VDC/30mA (for driving SSR solid state relays)
Thyristor trigger output: can trigger 5~500A bidirectional thyristors, 2 unidirectional thyristors in anti-parallel connection, or thyristor power modules
• Alarm functions: high limit, low limit, deviation high limit, deviation low limit
• Electromagnetic compatibility: IEC61000-4-4 (electrical fast transient/burst), ±4KV/5KHz; IEC61000-4-5 (surge), 4KV
• Isolation withstand voltage: between power terminal, relay contacts and signal terminals ≥2300V; between mutually isolated weak signal terminals ≥600V
• Power supply: 100~240VAC, -15%, +10% / 50~60Hz
• Power consumption: ≤5W
• Operating environment: temperature 0~60℃; humidity ≤90%RH
• Panel size: 96×96mm, 48×96mm
• Cutout size: 92×92mm, 45×92mm
• Insertion depth: ≤100mm
