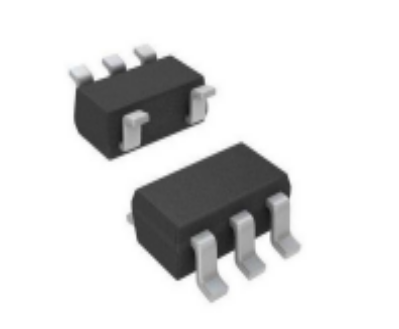

High-precision operational amplifier - MS8554
Low offset voltage: 8μV (TYP)
Rail-to-rail input and output swing
Single supply operating range from 2.5V to 5.5V
Voltage gain: 145dB (TYP) (at 5V supply)
Power supply rejection ratio: 110dB (TYP)
Common-mode rejection ratio: 110dB (TYP)
Extremely low input bias current: 20pA
Low operating current: 400μA per channel (TYP)
Overload recovery time: 60μs (at 5V supply)
No external capacitors required
Product introduction
MS855xis a rail-to-rail input/output high-precision operational amplifier withextremely low input offset voltage and bias current, and a single supply voltage range of2.5Vto5.5V。The rail-to-rail input and output range enablesMS855xto easily amplify highlevel and low level sensor signals. All these features makeMS855xan ideal choice for temperature,position, and pressure sensors, medical equipment, and strain amplifiers.Other applications operating at2.5Vto5.5Vrequiring high precision and long-term stabilityare also suitable.
1. Features of high-precision operational amplifier MS8554:
Low offset voltage: 8μV (TYP)
Rail-to-rail input and output swing
Single supply operating range from 2.5V to 5.5V
Voltage gain: 145dB (TYP) (at 5V supply)
Power supply rejection ratio: 110dB (TYP)
Common-mode rejection ratio: 110dB (TYP)
Extremely low input bias current: 20pA
Low operating current: 400μA per channel (TYP)
Overload recovery time: 60μs (at 5V supply)
No external capacitors required
2. Applications of high-precision operational amplifier MS8554：
