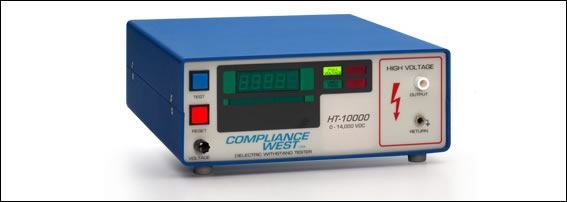

High Voltage HIPOT Tester - HT-10000P Series

High Voltage HIPOT Tester HT-10000P Series Overview

Withstanding voltage testing is a standard recognized by world-renowned safety authorities for testing safely assembled terminal equipment.HT-10000PThe series is an inspection instrument used to determine the dielectric characteristics of terminal equipment component assemblies. With or without ramp time, test time timers,HT-10000Pcan be configured to generate high voltage and locate an arc quenching area when an arc is detected.



High Voltage HIPOT Tester HT-10000P SeriesPerformance Parameters

Test Voltage Type:AC/DC

Voltage Range:0-10000V AC  0-14000V DC

Current Range:3mA(10KVAC)  1mA(14KVDC)

Input Voltage:108-132V，50/60Hz, max current2A

Fuse Requirement:120 VAC

Arc Detection: Independent high-frequency circuit

Leakage Detection: Independent low-frequency circuit

Test Time Range:1-60S

Ramp Time Range:1-5S

Voltmeter Accuracy: ±2%

Ammeter Accuracy: ±0.1 mA

Transformer Output:< 500VA

Output Connection: High voltage plug

Display:4digitLEDdisplay

Operating Temperature & Humidity:15-40℃, 0-90%RH (non-condensing)

High Voltage HIPOT Tester HT-10000P SeriesModel Characteristics

Model Voltage Range (MAX) Current Range (MAX)

HT10000P AC           10000 VAC                8mA

HT10000P DC           14000 VDC                5mA

HT10000P AC/DC        10000 VAC                3mA

                      14000 VDC                1mA

HT10kVa-25mA-I        10000 VAC                25mA

HT10kVac-100mA        10000 VAC                100mA

HT10kVac-500mA        10000 VAC                500mA
