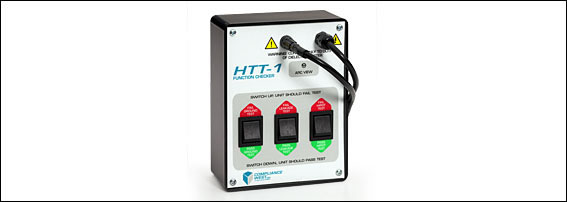

HIPOT Ground Impedance Function Checker - HTT-1

HIPOT Ground Impedance Function CheckerHTT-1Overview

HIPOT Ground Impedance Function CheckerHTT-1Provides a fast, safe, and reliable way to verify the correctness of hipot and ground impedance tests. Uses actual component values to simulate the product under test. Provides a rigorous periodic check for production line hipot and ground impedance tests, certified byTUVand other authoritative bodies. Can check3failure modes (open connection, high current leakage, dielectric breakdown) individually or in combination to verify correct test operation; a passing test can be simulated. Maximum test voltage is2000VAC/3000VDC



HIPOT Ground Impedance Function CheckerHTT-1Product Features

Arc test between750±400VACdisplayed in front panel window;

HTT-1is a passive device, requiring no batteries or power supply.

Portable, lightweight, and easy to operate;
