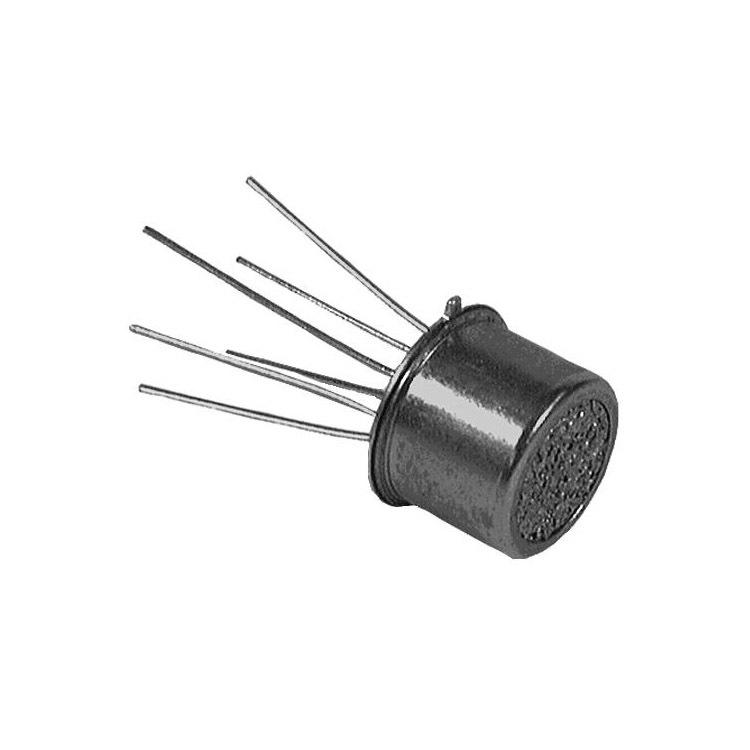

Honeywell Humidity Sensor - HIH-4602-C
High accuracy, fast response
Chemical resistance
Stable, low drift performance
Built-in electrostatic protection
Product Introduction
Honeywell Humidity Sensor HIH-4602-C Description:
The HIH-4602-A/C series relative humidity (RH) sensors feature a waterproof sintered stainless steel filter in a TO-5 housing, sensing relative humidity and temperature. The RH sensor is a laser-trimmed thermoset polymer capacitive sensing element with built-in signal processing. The HIH-4602-A/C combines a temperature sensor and RH sensor, ideal for measuring dew point or other absolute moisture. The HIH-4602-A/C includes a thermistor, and the HIH-4602-A/C includes a precision RTD. Each sensor is provided with factory calibration data to achieve ±3.5% RH accuracy.
Honeywell Humidity Sensor HIH-4602-C Features:
Near-linear voltage output corresponding to relative humidity (%RH)
Laser-trimmed for interchangeability
High accuracy, fast response
Chemical resistance
Stable, low drift performance
Built-in electrostatic protection
Suitable for dew point and absolute moisture measurement
TO-5 package
Honeywell Humidity Sensor HIH-4602-C Typical Applications:
Refrigeration equipment
HVAC (Heating, Ventilation, and Air Conditioning)
Medical equipment
Drying equipment
Measurement equipment
Battery-powered systems
OEM assemblies
Honeywell Humidity Sensor HIH-4602-C Performance Specifications (at 5 VDC supply and 25°C unless otherwise noted):
| Accuracy (best fit straight line) |
-3.5 +3.5%rh |
| Hysteresis |
3%rh |
| Repeatability |
± 0.5%rh |
| Response time (1/e in slowly moving air) |
50s |
| Supply voltage |
4 - 5.8vdc |
| Temperature compensation |
True RH = (sensor RH) / (1.0546 - 0.00216 T), T in °C |
| Storage temperature |
-50 125°c |
