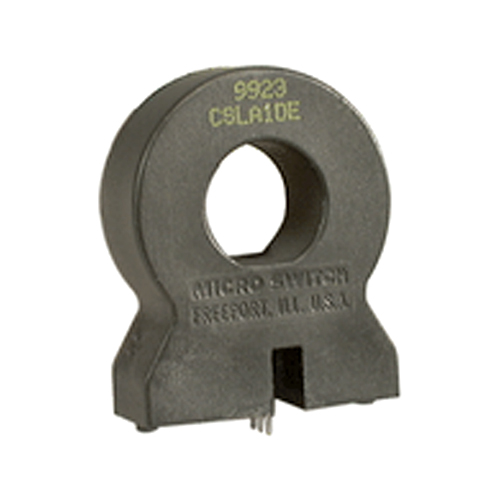

Honeywell Linear Current Sensor - CSLA Series

I. CSLA Series LinearCurrent SensorsProduct Description:
The CSLA series linear current sensors use our 91SS12-2 and SS94A1 linear output Hall-effect sensors (LOHET™). The sensing element is assembled in a printed circuit board mountable housing. This housing is available for sensors in four configurations. Typical mounting is with a 0.375 in long 4-40 screw and square nut (not provided), embedded in the housing or a 6-20 self-tapping screw. The sensor, flux collector, and housing together form the complete assembly. These sensors are ratiometric.

II. CSLA Series Linear Current Sensor Features:
• Linear output
• AC or DC current sensing
• Through-hole design
• Fast response time
• Output voltage isolated from input
• Low power consumption
• Maximum current limited only by conductor size
• Adjustable performance and built-in temperature compensation ensure operational stability
• Economical sensing
• Operating temperature range from -25°C to 85°C
• Housing: PBT polyester

III. CSLA Series Linear Current Sensor Applications:
• Variable speed drives
• Overcurrent protection
• Ground fault detectors
• Circuit feedback control systems
• Robotics
• UPS and telecom power supplies
• Welding power supplies
• Automotive - battery management systems
• Power meters
