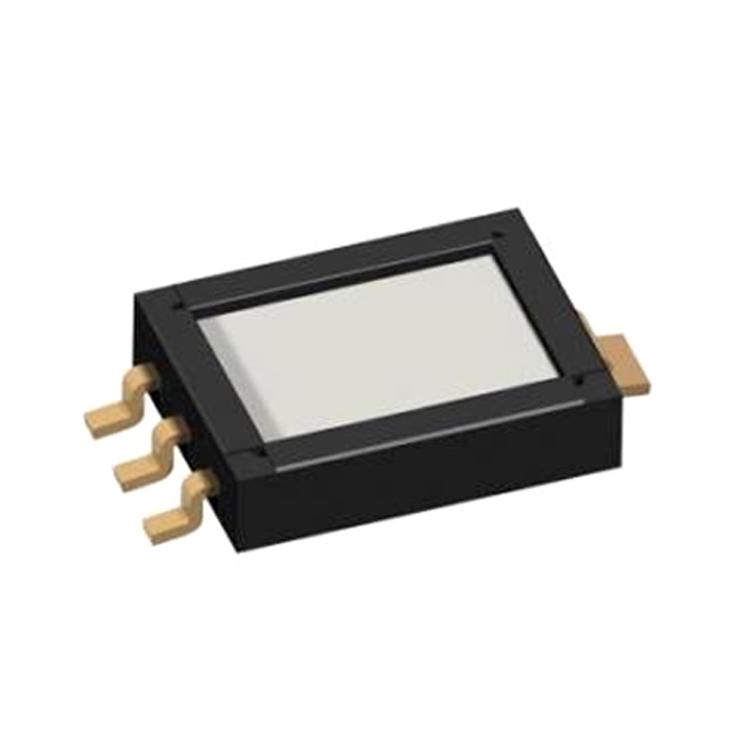

French Humirel humidity capacitive sensor - HTS2230SMD
(1) Humidity characteristics
* Operating temperature: -60~140
* Supply voltage: 10V
* Humidity measurement range: 1%~99%RH
* Average sensitivity (33%~75%): 0.13PF/%RH
* Humidity hysteresis: +/-1%RH
* Time constant: 3S
(2) Temperature characteristics
* Temperature measurement range: -40~125 °C
* Response time: 10S
Product introduction
I. HTS2230SMDHumidity capacitive sensorProduct description:
The HTS2230SMD humidity sensor is based on an independent capacitive element for humidity measurement and an NTC resistor for temperature measurement. This miniature temperature and humidity sensor is suitable for various condensation applications and standalone humidity measurement applications. It is interchangeable under standard conditions without calibration. Used in automotive manufacturing, home applications, printers, meteorological equipment, etc.
II. Main parameters of HTS2230SMD humidity capacitive sensor:
(1) Humidity characteristics
* Operating temperature: -60~140
* Supply voltage: 10V
* Humidity measurement range: 1%~99%RH
* Average sensitivity (33%~75%): 0.13PF/%RH
* Humidity hysteresis: +/-1%RH
* Time constant: 3S
(2) Temperature characteristics
* Temperature measurement range: -40~125 °C
* Response time: 10S
