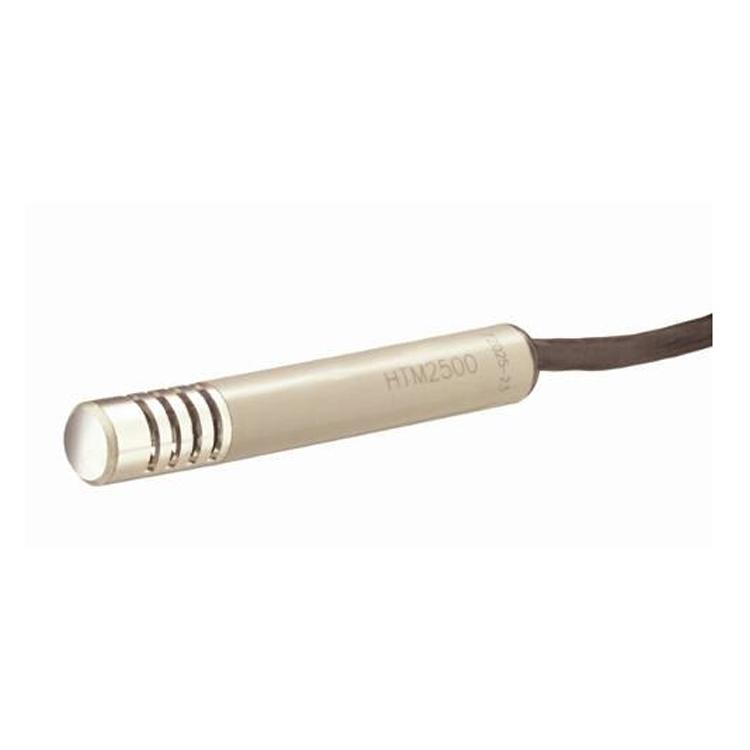

French Humirel capacitive linear voltage output temperature and humidity sensor - HTM2500

Temperature and humidity sensor HTM2500
——Capacitive linear voltage output temperature and humidity module

I. Introduction to capacitive linear voltage output temperature and humidity sensor HTM2500
Based on HS1101/HS1101LF voltage output humidity module, with high reliability and long-term stability. At 5VDC power supply, 0~100%RH corresponds to 1~4VDC linear voltage output, with very low temperature dependence, and also features temperature measurement.

II. Main features of capacitive linear voltage output temperature and humidity sensor HTM2500
(1) Designed and manufactured with patented capacitor HS1101, with protective rod-type packaging
(2) 5VDC constant voltage power supply, 1-4VDC amplified linear voltage output for customer convenience
(3) Wide range: 0~100%RH, operating temperature range –30~70℃
(4) Accuracy ±3%RH (10~95%RH range)
(5) Also features NTC thermistor 10KΩ@25℃ for ambient temperature measurement
(6) Anti-static, dust-proof, effectively resistant to various corrosive gas substances


III. Typical applications of capacitive linear voltage output temperature and humidity sensor HTM2500
Temperature and humidity instruments
Power and environment monitoring
Grain condition monitoring
Incubators
