Product Introduction

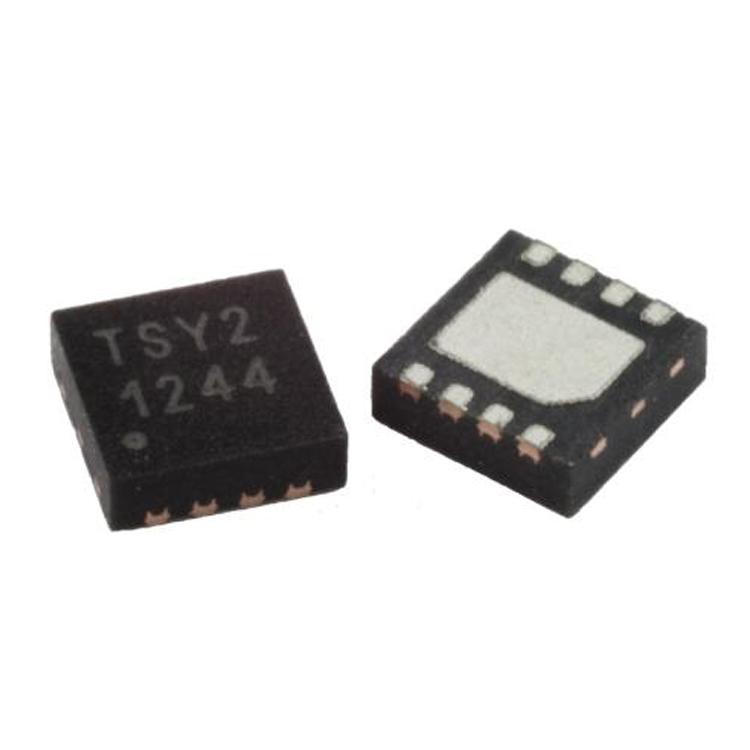

I.Digital Temperature SensorTSYS02D Product Description:
The digital temperature sensor TSYS02D uses new technology and is a single-chip general-purpose temperature sensor that connects directly to a microprocessor via the I2C interface. The microprocessor calculates the temperature measurement result using the ADC value and built-in factory calibration parameters. The sensor's measurement range is from -40°C to +125°C with a resolution of 0.01°C. The small TDFN8 package not only saves space but also ensures fast response.
II. Applications of Digital Temperature Sensor TSYS02D:
The digital temperature sensor TSYS02D is used in industrial control, replacing high-precision RTDs and NTCs, in heating/cooling systems, HVAC, automotive, etc.
III. Features and Technical Parameters of Digital Temperature Sensor TSYS02D:
High accuracy: ±0.2°C @ -5°C ~ +50°C
Customizable high-accuracy temperature range
Low power consumption: < 420μA (standby power < 0.14μA)
Small TDFN8 package, 2.5mm x 2.5mm
Measurement range: -40°C ~ +125°C
