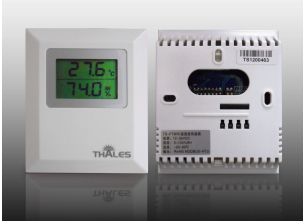

Indoor Split-Type Temperature and Humidity Sensor - TS-FTDO4Y-2305

1. Description of Indoor Split-Type Temperature and Humidity Sensor TS-FTDO4Y-2305:

The indoor split-type temperature and humidity sensor TS-FTDO4Y-2305 uses original imported temperature and humidity sensing modules. With high-performance microcontroller signal processing, the overall performance is superior and long-term stability is excellent.



2. Product Parameters of Indoor Split-Type Temperature and Humidity Sensor TS-FTDO4Y-2305:

Temperature

Range: 0~+50°C / -20~+80°C / -40~+60°C / Custom (optional)

Accuracy: ±0.3°C (typical, @25°C)

Power Consumption: 15mA (typical)

Resolution: 0.1°C

Response Time 6τ (63%): max=3s

Long-Term Stability: <0.04°C/year

Relative Humidity

Range: 0~100%RH

Accuracy (typical, including nonlinearity, hysteresis, and repeatability): ±3%RH

Factory Calibration Uncertainty:

±0.6%RH(0~40%RH) / ±1.0%RH(40~97%RH)

Response Time (90%) in Still Air: 5s Resolution: 0.1%RH

Long-Term Stability: <0.5%RH/year

Temperature and Humidity Output Signal: 4-20mA (Load <250 OHM)

Operating and Storage Environment

Operating Temperature: -40~+80°C

Operating Humidity: 10~90%RH (non-condensing)

Operating Voltage: DC15~36V (recommended DC24V)

Storage Temperature: 10~50°C

Storage Humidity: 20~60%RH

Note: Temperatures exceeding 80°C may cause irreversible deformation of the sensor housing.

All parameters above are measured at 25°C unless otherwise specified.
