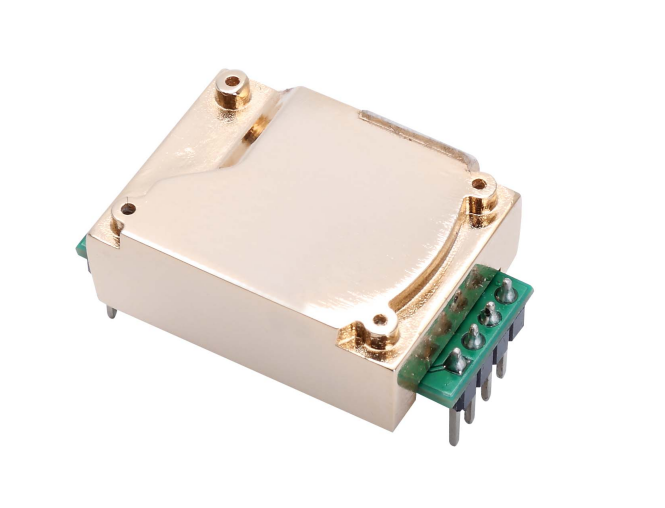

Infrared CO2 Sensor Carbon Dioxide Sensor - HT8101

Infrared CO2 Sensor Carbon Dioxide SensorHT8101 Description:

HT8101 is a digital carbon dioxide sensor based on non-dispersive infrared absorption principle (NDIR). It detects CO2 in the air using NDIR principle, featuring good selectivity, no oxygen dependence, long lifespan, built-in temperature compensation, and serial, analog, and PWM outputs for convenience. This sensor combines mature infrared absorption gas detection technology with precision optical path design and excellent circuit design to create a high-performance sensor.

Infrared CO2 Sensor Carbon Dioxide SensorHT8101 Features:

Uses non-dispersive infrared technology(NDIR)

Full range temperature compensation

Dual-channel design for better accuracy and stability

Compact and small structure, easy to install

Gold-plated gas chamber, waterproof and anti-corrosion

Infrared CO2 Sensor Carbon Dioxide SensorHT8101 Applications:

Cold chain transportation

Air conditioning

Air quality monitoring equipment

Air purifiers

Fresh air systems

Smart homes

Infrared CO2 Sensor Carbon Dioxide SensorHT8101 Parameters:

Measurement Range	300-10000ppm
Accuracy	±(50ppm + 5% of reading)
Response Time	<3 minutes
Operating Humidity	0~95 ％RH
Operating Temperature	-10~50 ℃
Dimensions	64.0mm X 23.0mm X 10.7mm
