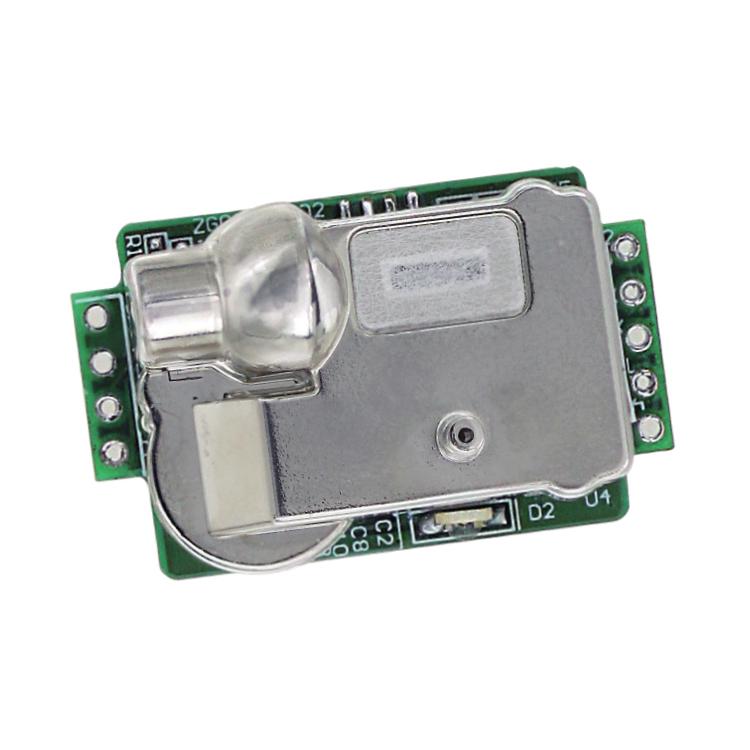

Infrared CO2 Sensor Carbon Dioxide Sensor - ZG09
Measurement Range: 0~10000ppm/1.0%
Accuracy: ±50ppm ±3%FS
Measurement Principle: Dual-beam NDIR
Response Time: Approximately 1 minute
Sampling Method: Free diffusion or flow control (50~200mL/min)
Operating Environment: 0~50°C, 0~95%RH, non-condensing
Power Supply: 5VDC ± 0.5V
Product Introduction
I.Carbon Dioxide SensorsZG09 Description:
The carbon dioxide sensor ZG09 is suitable for multiple applications including IAQ, greenhouse farming, HVAC, and DCV. It uses dual-beam NDIR technology to improve long-term stability.
II. Applications of ZG09 Carbon Dioxide Sensor:
IAQ (Indoor Air Quality)
Greenhouse Farming
HVAC (Heating, Ventilation, and Air Conditioning)
DCV (Demand-Controlled Ventilation)
III. ZG09 Carbon Dioxide Sensor Specifications:
Measurement Principle: Dual-beam NDIR
Sampling Method: Free diffusion or flow control (50~200mL/min)
Operating Environment: 0~50°C, 0~95%RH, non-condensing
Measurement Range: 0~10000ppm/1.0%
Accuracy:±50ppm ±3%FS
Repeatability: 20ppm
Response Time: Approximately 1 minute
Warm-up Time: <30S
Power Supply: 5VDC ± 0.5V
Current Consumption: High: 190mA, Average: 34mA
Output Signal: UART, I2C, PWM, DAC
