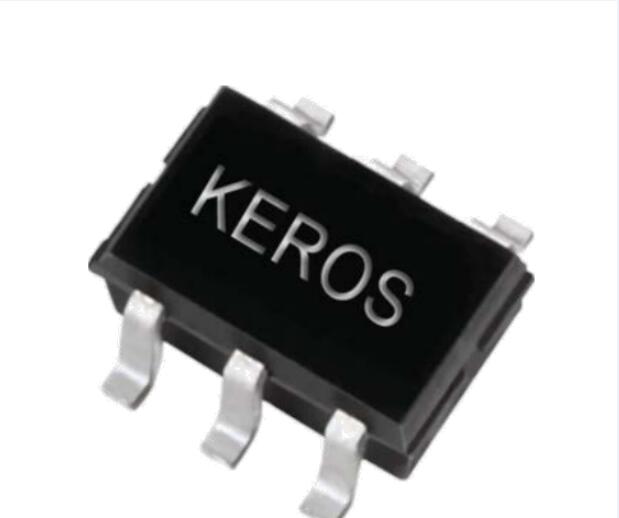

Korean Keros encryption chip - Lite

Encryption chip - KEROS-Lite is a high-performance 64-byte OTP memory family with an advanced built-in AES 256 security engine and encryption functions.
Through dynamic, symmetric mutual authentication, data encryption, and data decryption, it provides a secure place for storing sensitive information in the system. With its protection circuit, this information remains secure even under attack.
KEROS-Lite also provides high security, low cost, and easy implementation for host-client type systems without requiring an MCU operating system. The embedded AES256 encryption engine provides dynamic, symmetric mutual authentication between the device and host, and encrypts all data and passwords exchanged between them. These operations can use separate AES256 key sets.
A simplified host library is provided to customers, and customers can easily access and handle KEROS-Lite.


1. Features of Encryption Chip - Lite:
High security features:
- Symmetric mutual authentication
- AES 256-bit encryption and decryption engine
- I2C protocol with random stream encryption and decryption
- Separate key sets for authentication, encryption, and decryption
64-byte OTP memory
Embedded application features
- Supports 5-byte serial number
- Supports multi-master client interface I2C
- Wide input power range: 1.8V ~ 3.6V

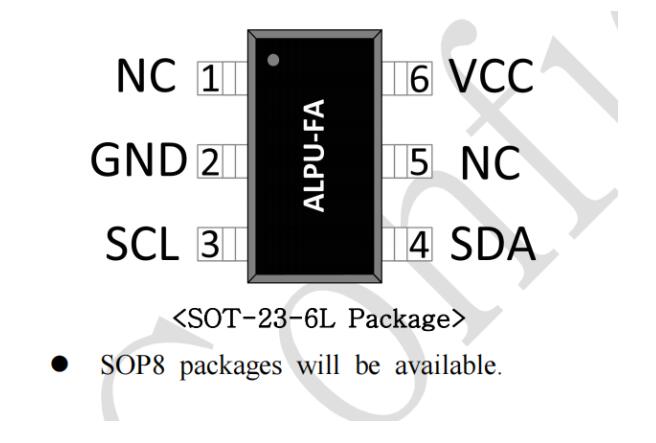

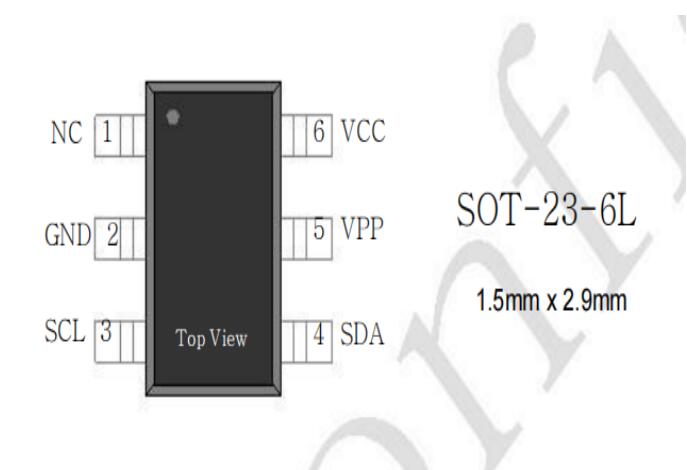

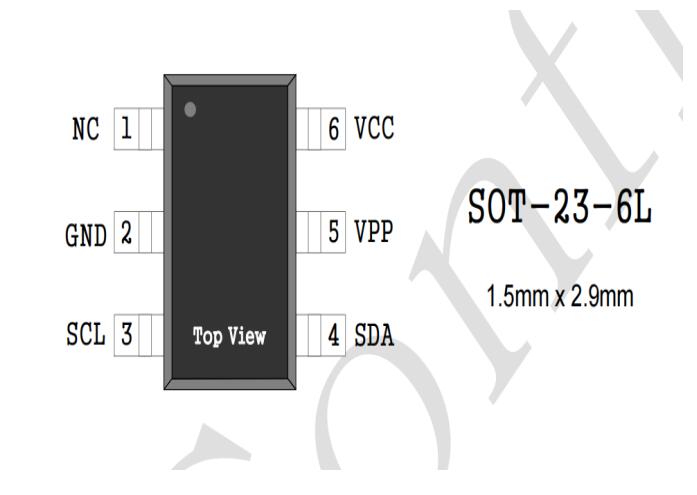

- SOT23-6 and 8SOP packages

2. Applications of Encryption Chip - Lite:
The I2C interface running at 400KHz is used for fast and efficient communication with up to 127 devices, individually addressable. KEROS-Lite is available in industry-standard 8-pin or 6-pin packages with the same familiar pin layout.
