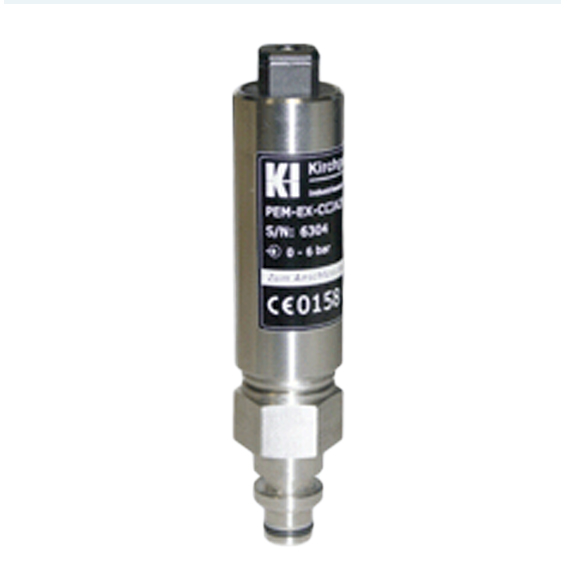

German Kirchgaesser Pressure Measuring Instrument - PEM-EX-C

I.PEM-EX-CPressure Measuring Instrument Features:
Rugged, durable, safe, general mining pressure sensor
This device connects to Kirchgaesser evaluation and/or display units or signal converters respectively, used to measure relative and absolute pressure of liquid and gaseous media
Process connection, sensor:
- Pipe thread G1¼, flush ceramic sensor or
- Pipe thread G½, internal ceramic sensor
- Pipe thread G½, flush thin film sensor or
- Pipe thread G½, internal thin film sensor or
- Socket nipple DN10 (acc. to DIN 20043), thin film sensor
With or without atmospheric pressure balance, the sensor measuring range is 400 mbar to 10 bar
The sensor's process connection socket nipple and pipe thread (internal) can be with or without mechanical damping
Electrical connection: Hirschmann surface mount G4 type connector
The cable connecting to Kirchgaesser evaluation and/or display unit or signal converter is a prefabricated cable of type VCG (1 .. 30 m), custom lengths can be ordered as needed (this cable is not a standard part of the instrument and must be ordered separately)

II.PEM-EX-CPressure Measuring Instrument Technical Parameters:
Measuring range:
- max. 600 bar (thin film) or
- max. 60 bar (ceramic diaphragm)
- Other ranges available upon request
Power supply: provided by evaluation and/or display unit or signal converter respectively
Power consumption: approx. 2 mA
Protection class IP65, according to EN 60529
Ambient temperature: -20°C to +60°C
Certified according to 94/9/EC (ATEX): I M1 Ex ia I (KDB 08ATEX027)
Mining product safety certificate: J2013327+J2013329
