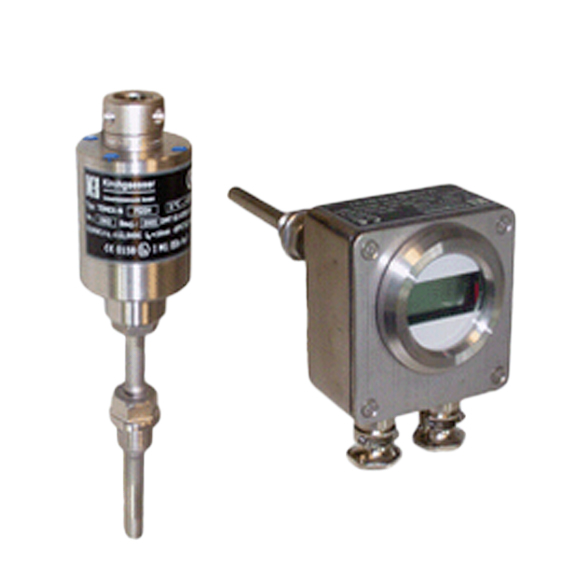

German Kirchgaesser Temperature Measuring Instrument - TEMEX

TEMEX Temperature Measuring InstrumentFeatures:
Rugged and durable, safe and worry-free general mining temperature measuring instrument
Microprocessor-controlled evaluation unit and display unit (TEMEX-E*)
Available versions:
- Standard version without electronic evaluation or field display
- Standard version with electronic evaluation and field display
- Remote version with electronic evaluation and field display
Measuring System:
- Quartz sensor, high precision, measuring range up to +70°C
- Semiconductor sensor, measuring range up to +150°C
Electrical Connectors:
- Terminals,
- Fixed fiber optic cable connection,
- Machaczek connector, model ME2A10,
- PROMOS connector, model BN4160,
- Hydrostar connector, model SKK24,
- Becker module with terminals or
- Souriau connector 845 series, size 2
Output Signal:Up to 2, frequency output 5 - 15Hz or limit value, potential-free

TEMEX Temperature Measuring InstrumentTechnical Parameters:
Measuring Range:
- Quartz sensor -20°C to +70°C or
- Semiconductor sensor -20°C to +150°C
Output Signal:
- Frequency 5 to 15 Hz or
- Limit value
Power supply: 8.5 - 13.5 V
Power consumption: TEMEX-N*: 10 mA
TEMEX-E*：30mA
Protection class IP65, according to EN 60529 standard
Certified according to 94/9/EC (ATEX): I M1 EEx ia I (DMT 03 ATEX E 062 X)
Ambient temperature: max. +60°C
Measurement error: Quartz sensor ± 0.2 K
Semiconductor sensor: ± 1.8% of final value
