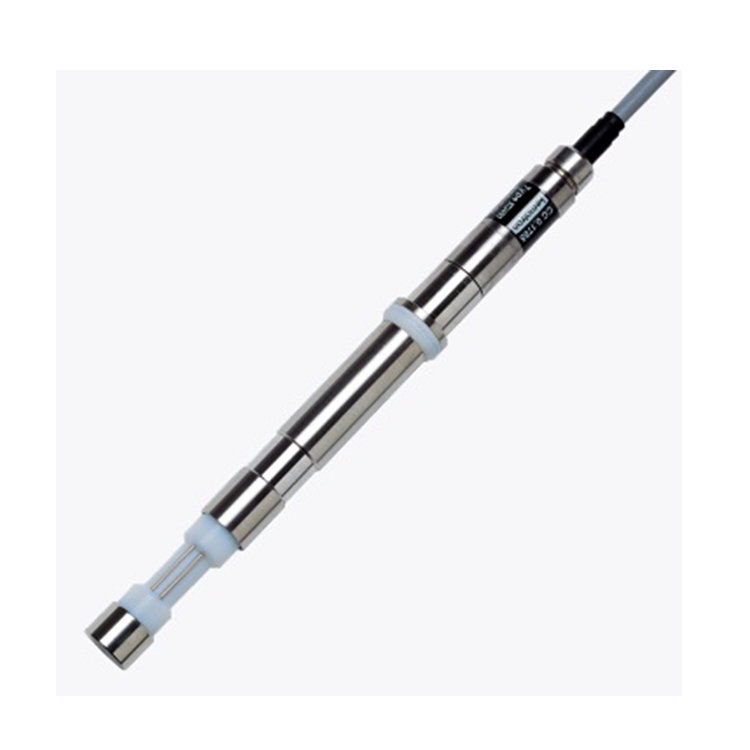

German Knick SE 600 Conductivity Sensor - SE 600
Suitable for special chemical applications at 210°C and 25 bar. Universal measurement range from pure water to 600 mS/cm. Features fixed cable and integrated temperature detector. Process wetted materials: stainless steel and PTFE; extremely compact design.
Product Introduction
1. Description of SE 600 Conductivity Sensor:
SE 600 Conductivity sensoris a 4-electrode sensor suitable for high-pressure and high-temperature applications; wide measurement range: from pure water to high conductivity substances.
Suitable for special chemical applications at 210°C and 25 bar. Universal measurement range from pure water to 600 mS/cm. Features fixed cable and integrated temperature detector. Process wetted materials: stainless steel and PTFE; extremely compact design.
2. Applications of SE 600 Conductivity Sensor
Special chemical processes; condenser monitoring, also suitable for pulp production with heavy contamination (e.g., fibrous media).
3. Technical Parameters of SE 600 Conductivity Sensor
| Cell constant *) | 0.14 cm … 0.38 cm (exact value printed on rating plate) |
| Measuring range | approx. 0.5 µS/cm … 600 mS/cm |
| Material | Body: PTFE / stainless steel AISI 316 L Electrodes: stainless steel AISI 316 L |
| Temperature detector | Pt 1000 (IEC Class A) |
| Temperature | max. 210 °C |
| Pressure | max. 25 bar |
| Process connection | 1“ weld nipple (see Accessories) |
| Cable | Fixed cable, 5 m |
4. Dimensions of SE 600 Conductivity Sensor
