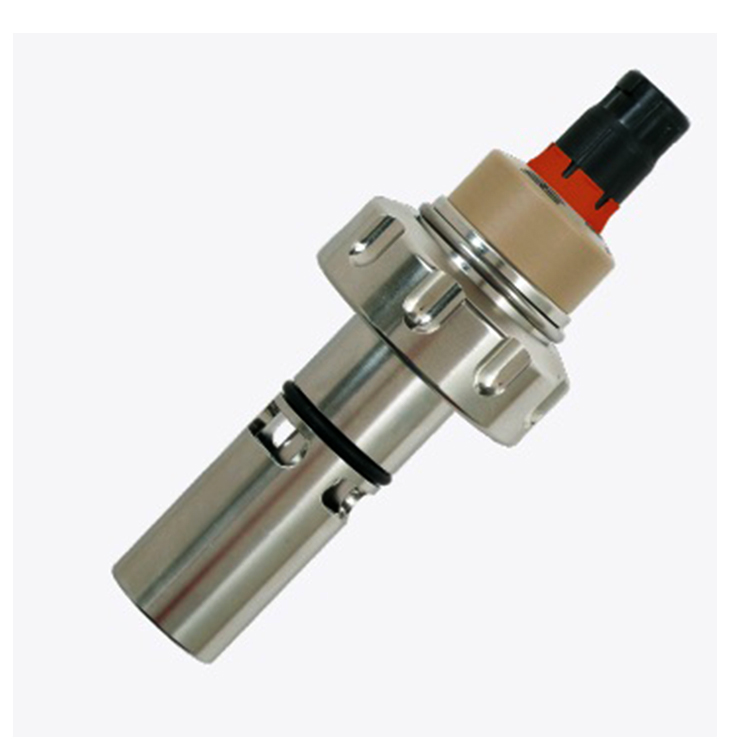

German Knick SE 605 (H) Conductivity Sensor - SE 605 (H)
Robust, coaxially arranged electrodes made of stainless steel. A large measuring range from ultrapure water to 200 μS/cm is achieved with just one sensor model. Integrated temperature detector for precise temperature compensation. The outer electrode is replaceable and easy to clean.
Product Introduction
1. Description of SE 605 (H) Conductivity Sensor:
SE 605 (H) Conductivity sensoris a robust 2-electrode sensor suitable for precise and reliable measurement of very low conductivity in hygienic applications, also applicable to ultrapure water.
Robust, coaxially arranged electrodes made of stainless steel. A large measuring range from ultrapure water to 200 μS/cm is achieved with just one sensor model. Integrated temperature detector for precise temperature compensation. The outer electrode is replaceable and easy to clean.
2. Applications of SE 605 (H) Conductivity Sensor
Ultrapure water, WFI (Water for Injection), pharmaceutical and food industries, biotechnology
3. Technical Parameters of SE 605 (H) Conductivity Sensor
| Cell constant | 0.021/cm |
| Measuring range | 0,001 ... 600 µS/cm |
| Accuracy | 2 % meas. value up to 500 µS/cm |
| Process-wetted materials | 1.4435 stainless steel; insulator: PEEK; gaskets: EPDM |
| Temperature detector | NTC 30 kΩ (reduced accuracy above 100 °C) |
| Temperature | Medium: -20 … +135 °C Environment: -25 … +80 °C |
| Pressure (relative) | -1 ... 25 bar (-20 … +70 °C) -1 ... 10 bar (135 °C) |
| Process adaptation | See product range |
| Sensor connector | Memosens |
| Explosion protection | II 1 G Ex ia IIC T3/T4/T6 |
| Hazardous area | II 3 G Ex ic IIC T3/T4/T6 Gc |
4. Dimensions of SE 605 (H) Conductivity Sensor
