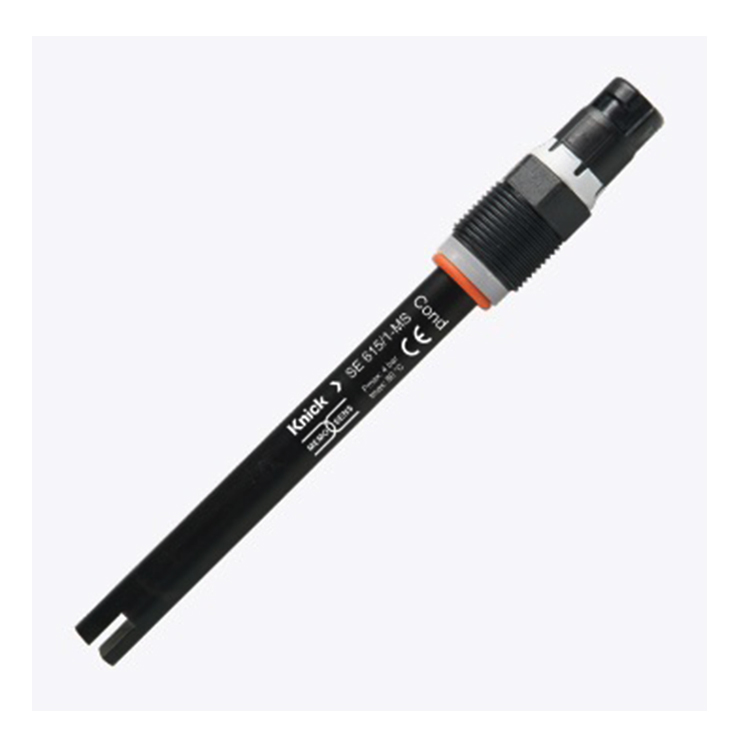

German Knick SE 615 2-Electrode Sensor - SE 615
The SE 615 conductivity sensor uses a Memosens connector system and features 2 graphite detection electrodes, requiring minimal maintenance. During sensor calibration and operation, an integrated temperature detector provides automatic temperature compensation. This sensor is designed for simultaneous measurement of conductivity and temperature in industrial processes.
Product Introduction
I. Description of SE 615 2-Electrode Sensor
SE 615 2Electrode sensoris a reasonably priced sensor suitable for water and wastewater treatment applications. The electrodes are made of low-polarization special graphite, offering a wide measurement range. Designed for MemoRail applications.
SE 615Conductivity sensoruses a Memosens connector system and features 2 graphite detection electrodes, requiring minimal maintenance. During sensor calibration and operation, an integrated temperature detector provides automatic temperature compensation. This sensor is designed for simultaneous measurement of conductivity and temperature in industrial processes.
II. Applications of SE 615 2-Electrode Sensor
Water/Wastewater Treatment
III. Technical Parameters of SE 615 2-Electrode Sensor
| Cell constant | Approx. 1/cm |
| Measuring range | 10 µS/cm … 20 mS/cm |
| Temperature | -5 ... +80 °C |
| Pressure | Max. 4 bar |
| Temperature detector | NTC 30 kohms |
| Body material | Polysulfone |
| Membrane material | Graphite |
| Measuring principle | 2-pole |
| Length | 120 mm |
| Process adaptation | Pg 13.5 |
| Sensor cap | Memosens |
IV. Dimensions of SE 615 2-Electrode Sensor
