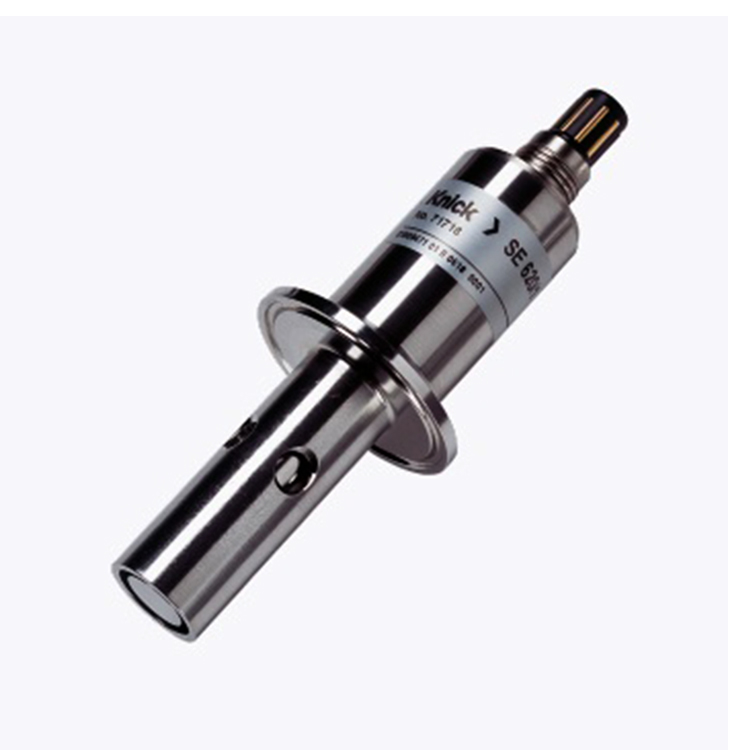

German Knick SE 620 Electrode Sensor - SE 620
Conductivity sensor for pharmaceutical design, featuring coaxial electrodes and an integrated temperature detector. Low surface roughness (<0.8 µm). Materials are physiologically harmless and meet FDA requirements. Steam sterilizable. Measurement results can be easily and reliably checked using the PortaSim simulator according to USP <645> standards.
Product Introduction
1. Description of SE 620 Electrode Sensor:
SE 620 Electrode sensorIt is a hygienic design 2-electrode sensor that meets pharmaceutical standards.
Conductivity sensor for pharmaceutical design, featuring coaxial electrodes and an integrated temperature detector. Low surface roughness (<0.8 µm). Materials are physiologically harmless and meet FDA requirements. Steam sterilizable. Measurement results can be easily and reliably checked using the PortaSim simulator according to USP standards.
2. Applications of SE 620 Electrode Sensor
Pure water and ultrapure water, water for injection (WFI), food industry, ion exchangers, reverse osmosis units, chip manufacturing
3. Technical Parameters of SE 620 Electrode Sensor
| Cell constant | 0.01/cm |
| Measuring range | 0.001 ... 50 µS/cm |
| Material | Cell and electrodes: stainless steel 1.4435, electropolished; Insulator and O-rings (plastics), FDA-listed |
| Roughness | < 0.8 µm |
| Temperature detector | Pt 1000 |
| Temperature | 0 ... 135 °C (steam-sterilizable) |
| Pressure | 16 bar at 25 °C, 9 bar at 60 °C |
| Process connection | Clamp DN 25 |
| Sensor cap | VP (VarioPin) |
4. Dimensions of SE 620 Electrode Sensor
