KPC Articulated Displacement Sensor - KPC

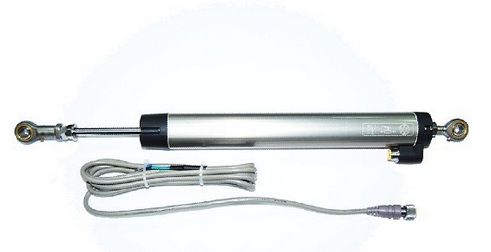

KPC Articulated Displacement Sensor Description:

KPC articulated electronic ruler, effective stroke from 75mm to 1000mm, with 4mm buffer stroke at both ends, accuracy of 0.05% to 0.04% FS. The housing surface is anodized for corrosion resistance; built-in carbon film measuring element, no temperature drift, long life; with automatic electrical grounding function. The KPC articulated displacement sensor is suitable for most general applications, especially for occasions where the product body cannot be fixed and requires swinging motion, without the need for alignment. Maximum allowable motion speed: 10m/s for vertical installation, 3m/s for horizontal installation.

KPC Articulated Displacement Sensor Detailed Parameters:
1. Effective stroke specifications (mm): 75, 100, 110, 125, 150, 175, 200, 225, 250, 275, 300, 325, 350, 375, 400, 425, 450, 475, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000;
2. Mechanical stroke (mm): effective stroke + 7mm (3.5mm buffer at each end)
3. Resistance (KΩ±10%): 5 (75-550mm effective stroke); 10 (600-1000mm effective stroke);
4. Independent linearity accuracy (%): 0.08 (75-250mm effective stroke); 0.05 (275-650mm effective stroke); 0.04 (650-1000mm effective stroke);
5. Resolution: infinite resolution; (articulated linear displacement sensor | linear displacement sensor | electronic ruler | KPC linear displacement sensor)
6. Operating speed: 5m/s;
7. Operating temperature range: -40 to 125°C
8. Dimensions: A = effective stroke + 88mm

KPC Articulated Displacement SensorInstallation dimensions: see figure
