KPM Micro Articulated Sensor - KPM

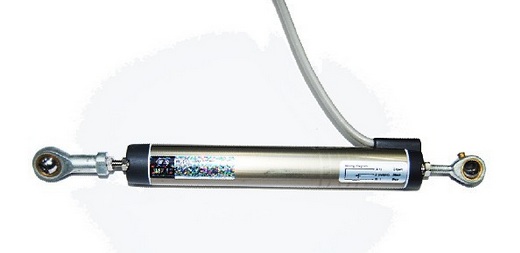

KPM Micro Articulated Sensor Description

The KPM micro articulated displacement sensor has an anodized housing surface for corrosion resistance; built-in carbon film board measurement unit, no temperature drift, long life. Effective stroke: 10mm-300mm; sealing class IP67, with options of direct lead wire and five-pin plug socket output, suitable for most general applications, especially for occasions with narrow installation space, where the body cannot be fixed, and movement has swing, no alignment needed; maximum allowable movement speed: 5m/s for vertical installation, 2m/s for horizontal installation.

KPM Micro Articulated Sensor Detailed Parameters:
1. Effective stroke specifications (mm): 10, 15, 25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300;
2. Mechanical stroke (mm): effective stroke + 3mm (1.5mm buffer at each end)
3. Resistance (KΩ±10%): 1 (10-25mm effective stroke); 2 (50mm effective stroke); 5.0 (75-300mm effective stroke);
4. Independent linearity accuracy (%): 0.2 (10-25mm effective stroke); 0.15 (50-75mm effective stroke); 0.10 (100-200mm effective stroke); 0.08 (225-300mm effective stroke); (Linear displacement sensor | Micro articulated linear displacement sensor | Articulated linear displacement sensor | Micro linear displacement sensor | Micro electronic ruler | Articulated electronic ruler | Electronic ruler)
5. Resolution: Infinite resolution;
6. Operating speed: 5m/s;
7. Operating temperature range: -40 to 125°C
8. Dimensions: A = effective stroke + 54mm

KPM Micro Articulated SensorInstallation dimensions: see figure
