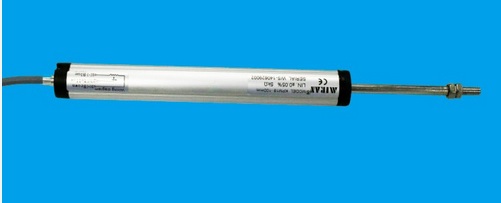

KPM18 Articulated Electronic Ruler - KPM18
Detailed Parameters:
1. Effective stroke specifications (mm): 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300;
2. Mechanical stroke (mm): effective stroke + 3mm (1.5mm buffer at each end)
3. Resistance (KΩ±10%): 1 (10-25mm effective stroke); 2 (50mm effective stroke); 5.0 (75-300mm effective stroke);
4. Independent linearity accuracy (%): 0.2 (10-25mm effective stroke); 0.15 (50-75mm effective stroke); 0.10 (100-200mm effective stroke); 0.08 (225-300mm effective stroke);
5. Resolution: Infinite resolution;
6. Operating speed: 5m/s;
7. Operating temperature range: -40 to 125°C
8. Installation dimensions: See figure
Product Introduction
KPM18 articulated electronic ruler, linear displacement sensor KPM18 product.
KPM18 Articulated Electronic Ruler Detailed Parameters:
1. Effective stroke specifications (mm): 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300;
2. Mechanical stroke (mm): effective stroke + 3mm (1.5mm buffer at each end)
3. Resistance (KΩ±10%): 1 (10-25mm effective stroke); 2 (50mm effective stroke); 5.0 (75-300mm effective stroke);
4. Independent linearity accuracy (%): 0.2 (10-25mm effective stroke); 0.15 (50-75mm effective stroke); 0.10 (100-200mm effective stroke); 0.08 (225-300mm effective stroke);
5. Resolution: Infinite resolution;
6. Operating speed: 5m/s;
7. Operating temperature range: -40 to 125°C
KPM18 Articulated Electronic RulerInstallation dimensions: See figure
