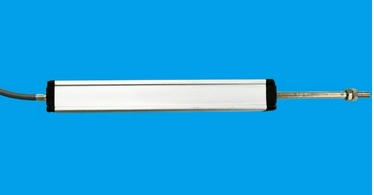

KTC2 Rod Electronic Ruler - KTC2
Detailed Specifications:
1. Effective stroke specifications (mm): 75, 100, 110, 125, 150, 175, 200, 225, 250, 275, 300
2. Mechanical stroke (mm): effective stroke + 7mm (3.5mm buffer at each end)
3. Resistance (KΩ±10%): 5 (75-550mm effective stroke); 10 (600-1000mm effective stroke); 20 (1150-1250mm effective stroke)
4. Independent linearity accuracy (%): 0.08 (75-250mm effective stroke); 0.05 (275-650mm effective stroke); 0.04 (650-1250mm effective stroke)
5. Resolution: infinite resolution
6. Operating speed: 10m/s
7. Operating temperature range: -40 to 125°C
Product Introduction
KTC2 Rod Electronic RulerDetailed Specifications:
1. Effective stroke specifications (mm): 75, 100, 110, 125, 150, 175, 200, 225, 250, 275, 300
2. Mechanical stroke (mm): effective stroke + 7mm (3.5mm buffer at each end)
3. Resistance (KΩ±10%): 5 (75-550mm effective stroke); 10 (600-1000mm effective stroke); 20 (1150-1250mm effective stroke)
4. Independent linearity accuracy (%): 0.08 (75-250mm effective stroke); 0.05 (275-650mm effective stroke); 0.04 (650-1250mm effective stroke)
5. Resolution: infinite resolution
6. Operating speed: 10m/s
7. Operating temperature range: -40 to 125°C
KTC2 Rod Electronic RulerRange
