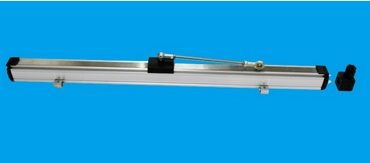

KTF1 Slider-Type Electronic Ruler - KTF1
Detailed Parameters:
1. Effective stroke specifications (mm): 75, 100, 110, 125, 150, 175, 200, 225, 250, 275, 300, 325, 350, 375, 400, 425, 450, 475, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1150, 1250, 1450, 1500, 1600, 1800, 2000, 2250, 2500, 2750, 3000;
2. Mechanical stroke (mm): effective stroke + 7mm (3.5mm buffer at each end)
3. Resistance (KΩ±10%): 5 (75-550mm effective stroke); 10 (600-1000mm effective stroke); 20 (1150-3000mm effective stroke);
4. Independent linearity accuracy (%): 0.08 (75-250mm effective stroke); 0.05 (275-650mm effective stroke); 0.04 (650-1250mm effective stroke); 0.03 (1250-3000mm effective stroke)
5. Resolution: Infinite resolution;
6. Maximum working speed: 10m/s;
7. Operating temperature range: -40 to 125°C
8. Dimensions: A = effective stroke + 143mm
Product Introduction
KTF1 Slider-Type Electronic RulerDetailed Parameters:
1. Effective stroke specifications (mm): 75, 100, 110, 125, 150, 175, 200, 225, 250, 275, 300, 325, 350, 375, 400, 425, 450, 475, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1150, 1250, 1450, 1500, 1600, 1800, 2000, 2250, 2500, 2750, 3000;
2. Mechanical stroke (mm): effective stroke + 7mm (3.5mm buffer at each end)
3. Resistance (KΩ±10%): 5 (75-550mm effective stroke); 10 (600-1000mm effective stroke); 20 (1150-3000mm effective stroke);
4. Independent linearity accuracy (%): 0.08 (75-250mm effective stroke); 0.05 (275-650mm effective stroke); 0.04 (650-1250mm effective stroke); 0.03 (1250-3000mm effective stroke)
5. Resolution: Infinite resolution;
6. Maximum working speed: 10m/s;
7. Operating temperature range: -40 to 125°C
8. Dimensions: A = effective stroke + 143mm
KTF1 Slider-Type Electronic RulerInstallation dimensions: See figure
