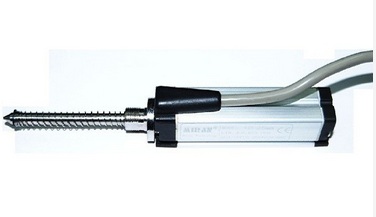

KTR Self-Recovery Displacement Sensor - KTR
Detailed Parameters:
1. Effective stroke specifications (mm): 10, 15, 25, 50, 75, 100;
2. Mechanical stroke (mm): effective stroke + 3mm (1.5mm buffer at each end)
3. Resistance (KΩ±10%): 1 (10-25mm effective stroke); 2 (50mm effective stroke); 5.0 (75-100mm effective stroke);
4. Independent linearity accuracy (%): 0.2 (10-25mm effective stroke); 0.15 (50-75mm effective stroke); 0.10 (100mm effective stroke);
5. Resolution: infinite resolution;
6. Maximum operating speed: 5m/s;
7. Operating temperature range: -40 to 125°C
8. Dimensions: A = effective stroke + 43mm
Product Introduction
KTR Self-Recovery Displacement Sensor Description
The KTR self-recovery displacement sensor has an effective stroke of 5mm to 100mm, with a 2mm buffer stroke at both ends, and an accuracy of 1% to 0.1% FS. The housing surface is anodized for corrosion resistance; built-in carbon film linear board measurement unit, no temperature drift, long life; with automatic electrical grounding function. The sealing rating is IP67, with options for direct cable output or five-pin connector output, suitable for most general applications, especially in spaces with limited installation space. The push rod requires no installation or alignment, with a push angle of 90±3°, and allows a maximum push speed of 3m/s.
KTR Self-Recovery Displacement SensorDetailed Parameters:
1. Effective stroke specifications (mm): 10, 15, 25, 50, 75, 100;
2. Mechanical stroke (mm): effective stroke + 3mm (1.5mm buffer at each end)
3. Resistance (KΩ±10%): 1 (10-25mm effective stroke); 2 (50mm effective stroke); 5.0 (75-100mm effective stroke);
4. Independent linearity accuracy (%): 0.2 (10-25mm effective stroke); 0.15 (50-75mm effective stroke); 0.10 (100mm effective stroke);
5. Resolution: infinite resolution;
6. Maximum operating speed: 5m/s;
7. Operating temperature range: -40 to 125°C
8. Dimensions: A = effective stroke + 43mm
KTR Self-Recovery Displacement SensorInstallation dimensions: see figure
