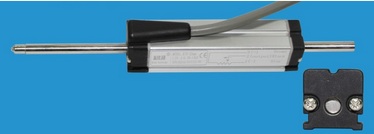

KTR3 Spring-Built-In Self-Recovery Displacement Sensor - KTR3
Detailed Parameters:
1. Effective stroke specifications (mm): 10, 15, 25, 50, 75, 100;
2. Mechanical stroke (mm): effective stroke + 3mm (1.5mm buffer at each end)
3. Resistance (KΩ±10%): 1 (10~25mm effective stroke); 2 (50mm effective stroke); 5.0 (75~100mm effective stroke);
4. Independent linearity accuracy (%): 0.2 (10~25mm effective stroke); 0.15 (50~75mm effective stroke); 0.10 (100mm effective stroke);
5. Resolution: infinite resolution;
6. Operating speed: 5m/s;
Product Introduction
KTR3 Spring-Built-In Self-Recovery Displacement Sensor Description
The KTR3 spring-built-in self-recovery displacement sensor has an effective stroke of 5mm~100mm, with 2mm buffer stroke at both ends, and accuracy of 1%~0.1%FS. The housing surface is anodized for corrosion resistance; built-in carbon film linear board measurement unit, no temperature drift, long life; automatic electrical grounding function. Sealing rating is IP67, with direct cable output and five-pin plug socket output options, suitable for most general applications, especially for confined installation spaces; the push rod requires no installation, no alignment, push angle 90±3°, allowing push speed of 3m/s.
KTR3 Spring-Built-In Self-Recovery Displacement SensorDetailed Parameters:
1. Effective stroke specifications (mm): 10, 15, 25, 50, 75, 100;
2. Mechanical stroke (mm): effective stroke + 3mm (1.5mm buffer at each end)
3. Resistance (KΩ±10%): 1 (10~25mm effective stroke); 2 (50mm effective stroke); 5.0 (75~100mm effective stroke);
4. Independent linearity accuracy (%): 0.2 (10~25mm effective stroke); 0.15 (50~75mm effective stroke); 0.10 (100mm effective stroke);
5. Resolution: infinite resolution;
6. Operating speed: 5m/s;
KTR3 Spring-Built-In Self-Recovery Displacement SensorDimension drawing as follows:
