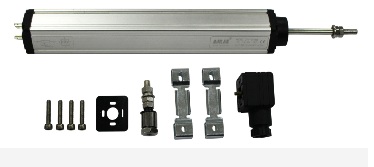

LWH Rod-Type Electronic Ruler:

Brand new design concept, built-in high-precision trimmed carbon film wire board, noiseless output during operation, external dirt guide groove, effectively preventing oil, dust, etc. from accumulating inside the sensor.

Effective stroke 75mm~900mm, with 4mm buffer stroke at both ends, accuracy 0.05%FS. The housing surface is anodized for corrosion resistance; built-in high-precision trimmed carbon film wire board unit, no temperature drift, long lifespan; automatic electrical grounding function. Sealing class IP67, DIN430650 standard plug and socket, suitable for most general applications; the rod ball joint has 0.5mm automatic self-centering function, allowing a maximum limit speed of 10m/s.

LWH Rod-Type Electronic RulerDetailed Parameters:
1. Effective stroke specifications (mm): 75, 100, 110, 125, 150, 175, 200, 225, 250, 275, 300, 325, 350, 375, 400, 425, 450, 475, 500, 550, 600, 650, 700, 750, 800, 850, 900;
2. Mechanical stroke (mm): effective stroke + 7mm (3.5mm buffer at each end)
3. Resistance (KΩ±10%): 5 (75~550mm effective stroke); 10 (600~1000mm effective stroke); 20 (1150~1250mm effective stroke);
4. Independent linearity accuracy (%): 0.08 (75~250mm effective stroke); 0.05 (275~650mm effective stroke); 0.04 (650~1250mm effective stroke);
5. Resolution: infinite resolution;
6. Working speed: 10m/s;
7. Operating temperature range: -40~125°C
8. Dimensions: A = effective stroke + 80mm

LWH Rod-Type Electronic RulerInstallation Dimension Drawing
